Electrical & Hydraulic Circuit Diagram Hitachi ZW250-5B Wheel Loader | TTNEC-EN-00 (2016.04.21)

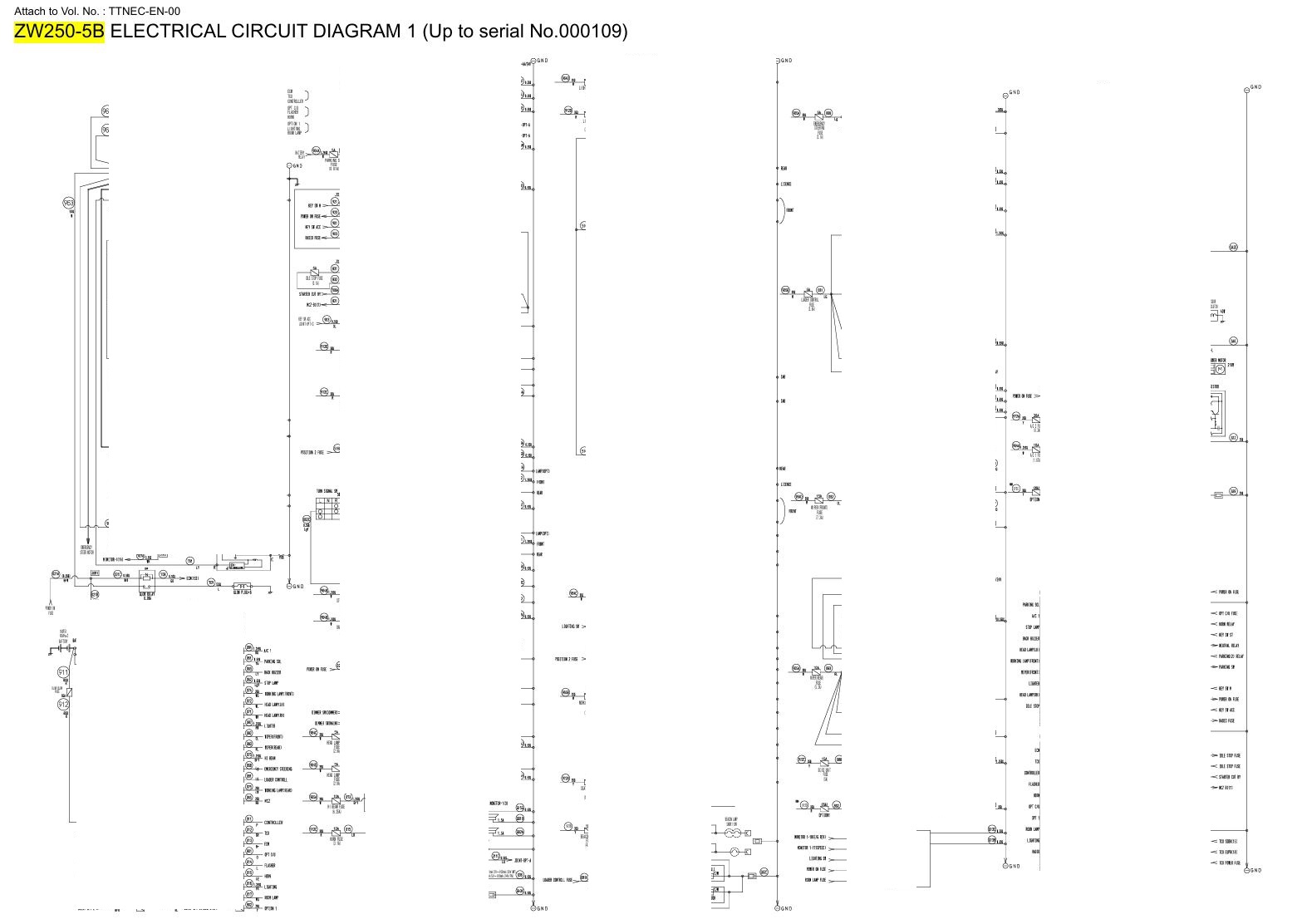

ZW250-5B ELECTRICAL CIRCUIT DIAGRAM 1 (Up to serial No.000109)
ZW250-5B ELECTRICAL CIRCUIT DIAGRAM 2 (Up to Serial No.000109 )
ZW250-5B ELECTRICAL CIRCUIT DIAGRAM 1 (Serial No.000110 and up)
ZW250-5B ELECTRICAL CIRCUIT DIAGRAM 2 (Serial No.000110 and up)
ELECTRICAL CIRCUIT DIAGRAM 1 (Serial No.000192 and Up)
ELECTRICAL CIRCUIT DIAGRAM 2 (Serial No.000192 and Up)
ZW250-5B REAR FRAME HARNESS
ZW250-5B REAR CONSOLE HARNESS
ZW250-5B FRONT FRAME HARNESS
ZW250-5B FRONT CONSOLE HARNESS
ZW250-5B RIGHT CONSOLE HARNESS
ZW250-5B RIGHT CONSOLE(MF LEVER)HARNESS
ZW250-5B CENTER CONSOLE HARNESS
ZW250-5B REAR FRAME LEFT HARNESS
ZW250-5B MONITOR HARNESS
ZW250-5B ENGINE HARNESS(DPF)
ZW250-5B TRANSMISSION HARNESS
ZW250-5B REAR GRILE HARNESS
ZW250-5B REAR CONBINATION LIGHT HARNESS
ZW250-5B EMERGENCY STEERING HARNESS(OPTIONAL)
ZW250-5B AUTO SHUT-DOWN HARNESS(OPTIONAL)

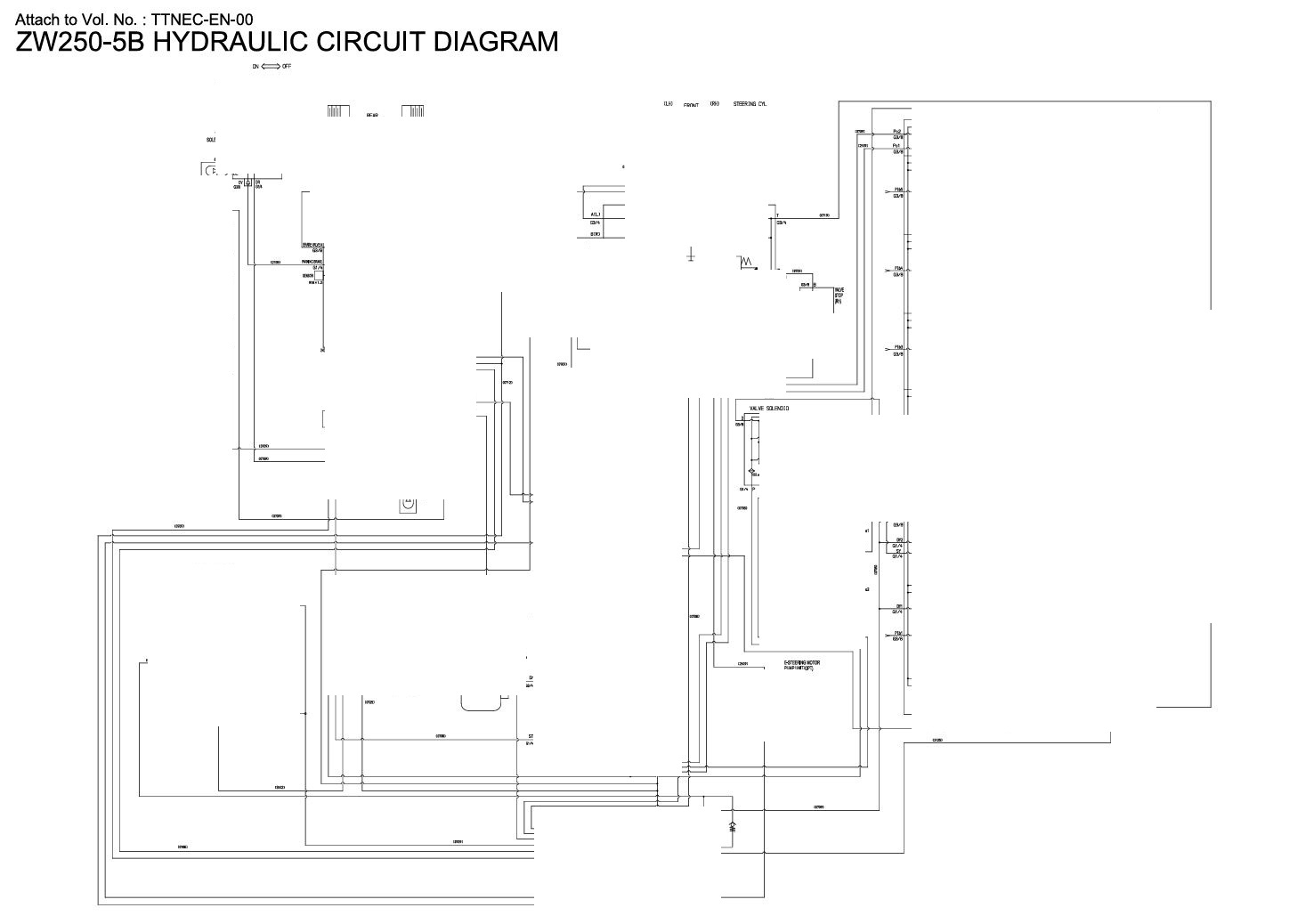

ZW250-5B HYDRAULIC CIRCUIT DIAGRAM
Cab Harness 1 (FRITZMEIER)
Cab Harness 2
(FRITZMEIER)
Cab Harness 3
(FRITZMEIER)
