Electrical & Hydraulic Circuit Diagram Hitachi ZX19-5A | TABG50-EN-00 (2020.03.06)

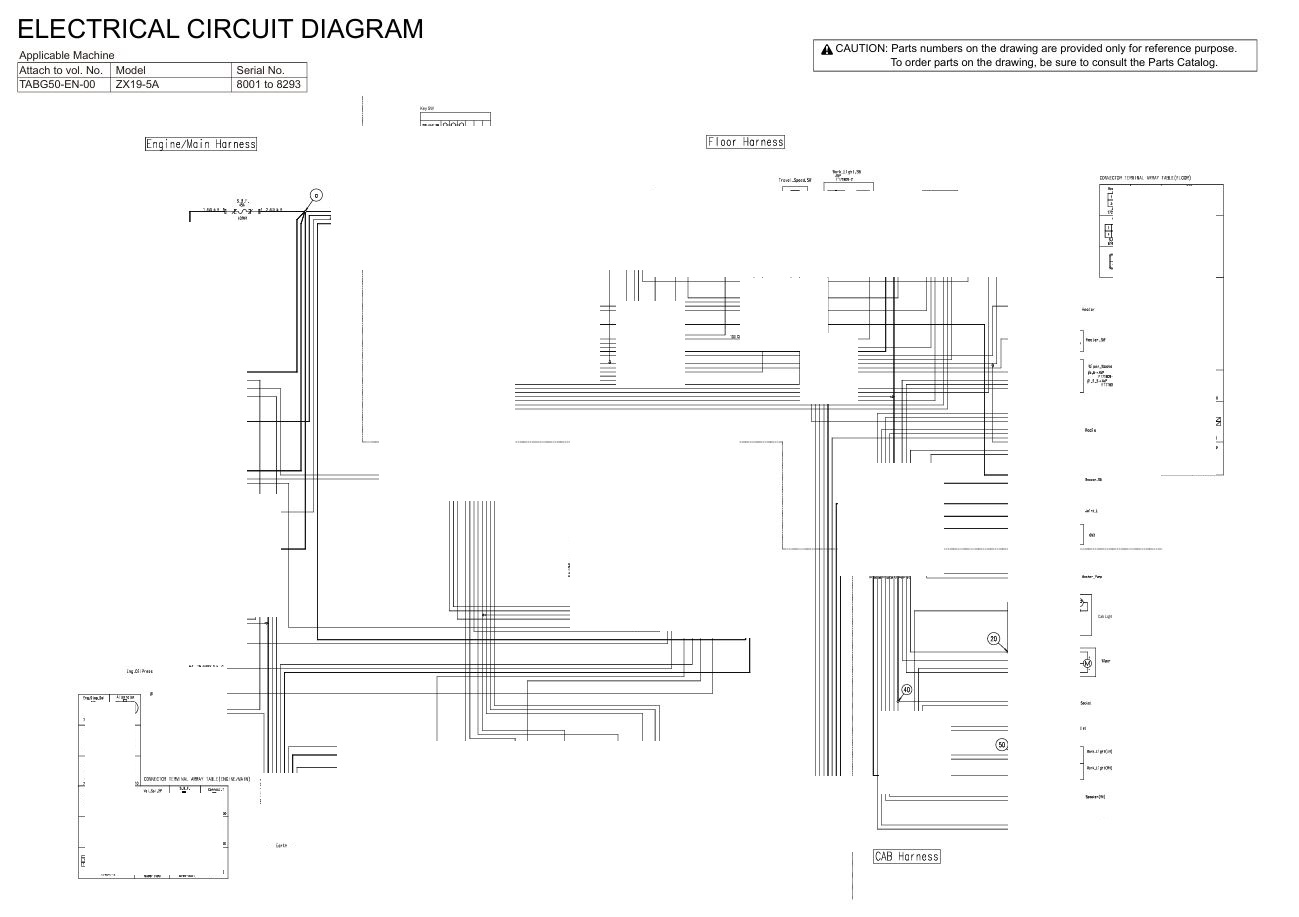

ELECTRICAL CIRCUIT DIAGRAM (Serial No. 8001 to 8293) ZX19-5A 8001 to 8293
ELECTRICAL CIRCUIT DIAGRAM (Serial No. 8295 to 8296) ZX19-5A 8295 to 8296
ELECTRICAL CIRCUIT DIAGRAM (Serial No. 8297 to 8546) ZX19-5A 8297 to 8546
ELECTRICAL CIRCUIT DIAGRAM (Serial No. 8547 and up) ZX19-5A 8547 and up
FLOOR HARNESS (Serial No. 8001 and up) ZX19-5A 8001 and up
MAIN HARNESS (Serial No. 8001 to 8296) ZX19-5A 8001 to 8296
MAIN HARNESS (Serial No. 8297 to 8546) ZX19-5A 8297 to 8546
MAIN HARNESS (Serial No. 8547 and up) ZX19-5A 8547 and up

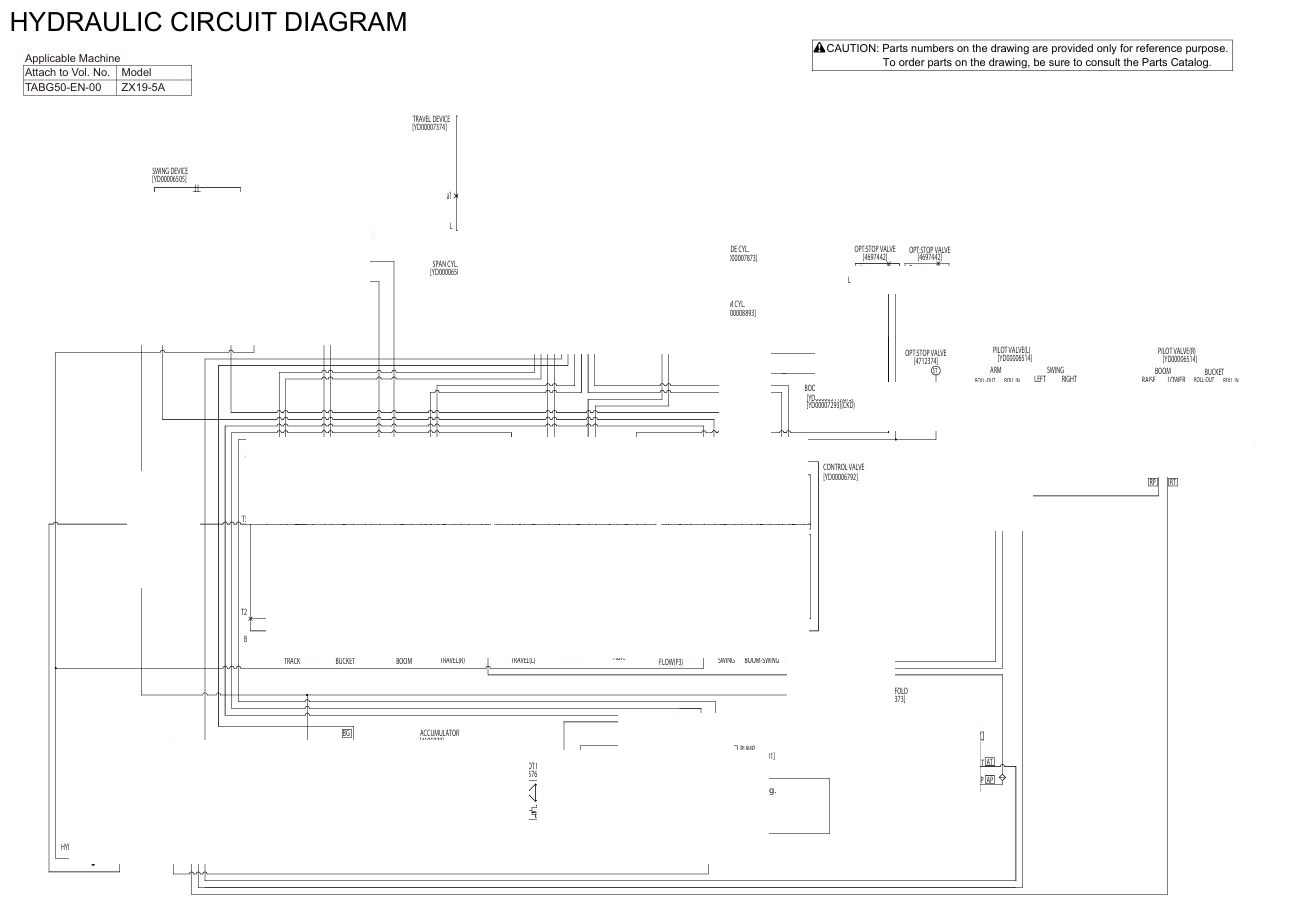

HYDRAULIC CIRCUIT DIAGRAM ZX19-5A
