Electrical & Hydraulic Circuit Diagram Hitachi ZX250LC-7, ZX250LCN-7 Excavator | TTDFY50-EN-00 (2019.11.18)

TTDFY50-EN-00_Circuit(20191118)

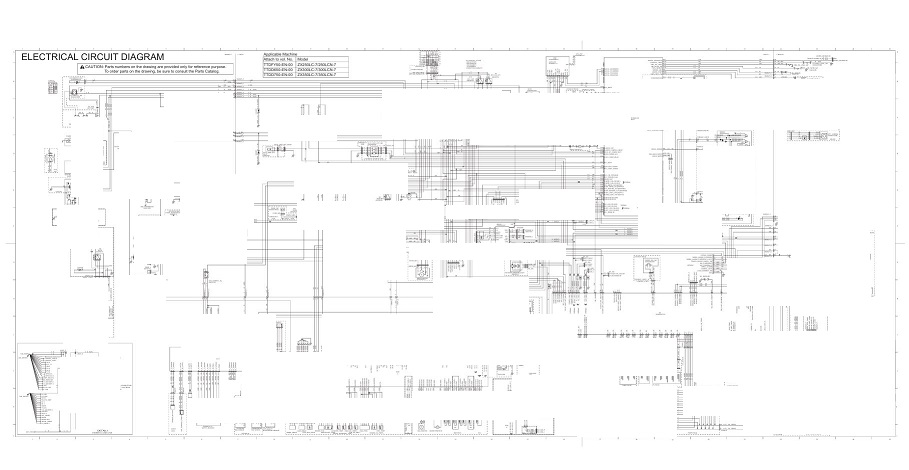

ELECTRICAL CIRCUIT DIAGRAM
CONNECTORS
CAB HARNESS
MAIN HARNESS
PUMP HARNESS
NOx HARNESS
MONITOR HARNESS
CONSOLE HARNESS
CONTROL VALVE HARNESS
WIPER HARNESS
WIPER MOTOR HARNESS
PILOT SHUT-OFF SOLENOID VALVE HARNESS
ENGINE STOP SWITCH HARNESS
CIGAR LIGHTER SUB HARNESS
RADIATOR SUB HARNESS

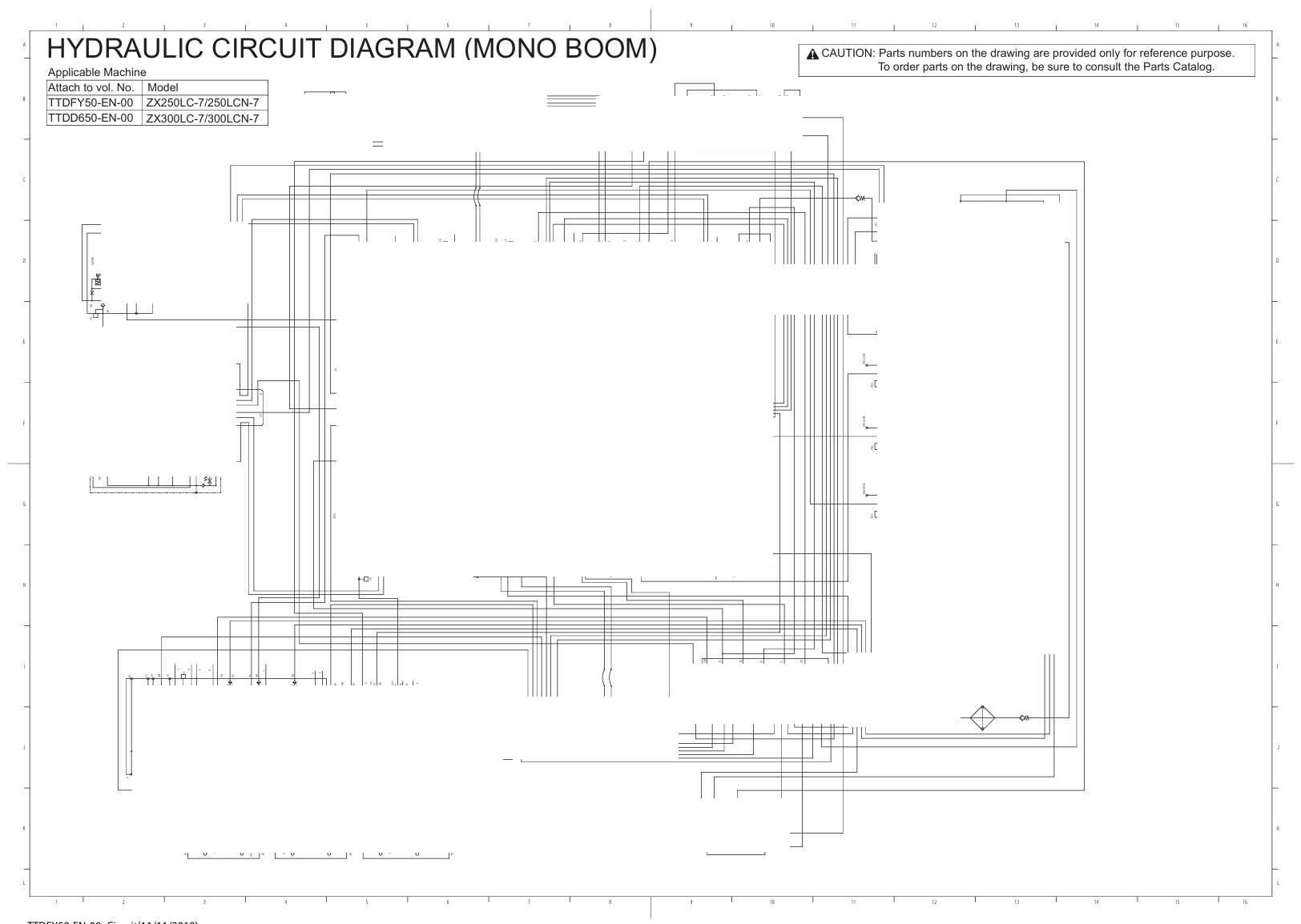

HYDRAULIC CIRCUIT DIAGRAM (MONO BOOM)
HYDRAULIC CIRCUIT DIAGRAM (OPTION) (2-PIECE BOOM, AFL 1ch)
HYDRAULIC CIRCUIT DIAGRAM （OPTION) (2-PIECE BOOM, AFL 2ch)
TTDFY50-EN-00_Circuit_OP(20191118)
ELECTRICAL CIRCUIT DIAGRAM (OPTION)
CONSOLE HARNESS (OPTION)
CAB REAR HARNESS
REAR HEADLIGHT HARNESS
REAR HEADLIGHT SWITCH HARNESS
REAR HEADLIGHT SUB HARNESS
HEADLIGHT HARNESS
AFL HARNESS (REAR SIDE) (1ch and 2ch)
AFL MAIN HARNESS (1ch)
AFL MAIN HARNESS (2ch)
CAMERA LIGHT HARNESS
BOOM LIGHT (RIGHT) HARNESS
AUXILIARY FLOW COMBINER HARNESS
ADDITIONAL PUMP HARNESS
SWING ALARM HARNESS
