Parts Catalog Hitachi ZW80-5B Wheel Loader | PNCH-1-4

Parts Catalog Hitachi ZW80-5B Wheel Loader PNCH-1-4 (Preview)

COVER

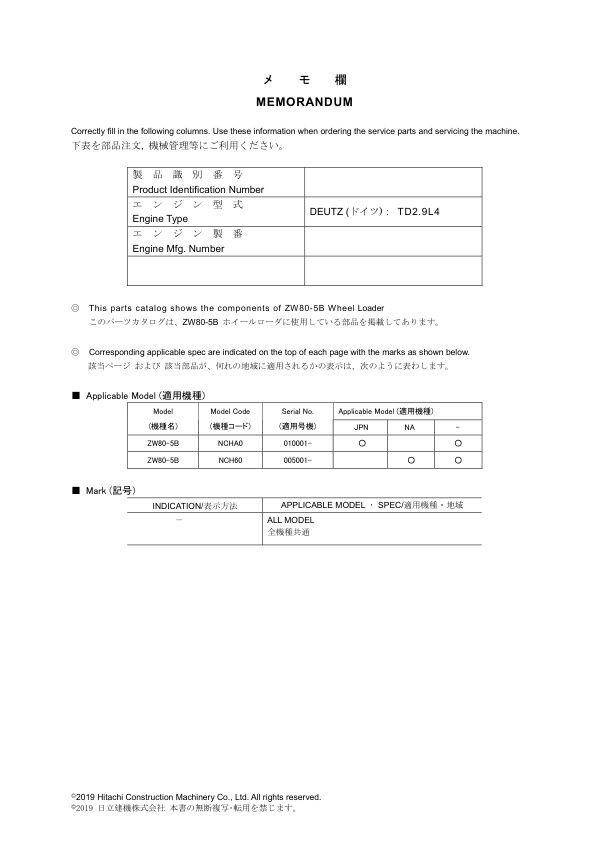

MEMORANDUM
FOREWORD
ILLUSTRATION CONTENTS
CONTENTS
PERIODIC REPLACEMENT PARTS
FILTER, ELEMENT, BELT PARTS
BUCKET PARTS
BULB,LENS PARTS
WIPER BLADE PARTS
ENGINE
ENGINE PARTS
ENGINE
ENGINE SUPPORT
RAIN CAP
FUEL TANK
FUEL TANK (FILLER NECK OFFSET TYPE)
FUEL PIPING
FUEL PIPING (FOR FILLER NECK OFFSET TYPE)
MUFFLER
MUFFLER PARTS
RADIATOR
RADIATOR (WIDE)
RADIATOR SUPPORT (STD)
RADIATOR PARTS
RADIATOR PARTS (NORTH AMERICA)
RADIATOR COVER
RADIATOR COVER (WITH DISCONNECT SWITCH)
RADIATOR SCREEN
RADIATOR SUPPORT (SCREEN)
RADIATOR SUPPORT (SCREEN)(NORTH AMERICA)
AIR CLEANER
AIR CLEANER PARTS
AIR CLEANER PARTS (PRE CLEANER)
PRE-CLEANER
POWER TRAIN
HST
HST FILTER
HST PIPING
PROPELLER SHAFT
FRONT AXLE
FRONT AXLE (DIFFERENTIAL LOCK)
REAR AXLE
REAR AXLE (NORTH AMERICA)
FRONT AXLE (LSD)
REAR AXLE (LSD)
TIRE
TIRE
SNOW TIRE (YOKOHAMA)
SNOW TIRE (TOYO)
NO-PUNCTURE TIRE
DIFFERENTIAL LOCK CONTROL
TIRE STOPPER (FRONT FRAME)
WHELL CAP (OUTSIDE FRONT)(17.5/65-20 TIRE)
WHEEL CAP (OUTSIDE REAR)(17.5/65-20 TIRE)
WHEEL CAP (INSIDE FRONT)(17.5/65-20 TIRE)
WHEEL CAP (INSIDE REAR)(17.5/65-20 TIRE)
CHASSIS
FRONT FRAME
FRONT FRAME (NORTH AMERICA)
FRONT FRAME COVER
FRONT FRAME COVER (REMOVABLE TYPE)
FRONT AXLE COVER
SAFETY-BAR
CENTER PIN
STEP
STEP (FOR FILLER NECK OFFSET TYPE)
STAY
HOOD BASE
HOOD BASE(FOR ROTARY BEACON)(L,R)
HOOD BASE (CANOPY)
COVER (HOOD BASE)
MUD GUARD
REAR FRAME
UNDER GUARD (REAR)
UNDER GUARD (FRONT & REAR)(ZINC-PLATED)
ENGINE HOOD
HOOD SUPPORT
INSULATOR (FRONT FRAME)
INSULATOR (FRONT FRAME)(NORTH AMERICA)
INSULATOR (FLOOR PLATE(STD))
INSULATOR (FLOOR PLATE(AIR-CONDITIONER))
INSULATOR (OPERATOR FRAME)
INSULATOR (SEAT SUPPORT)
INSULATOR (REAR FRAME)
INSULATOR (REAR FENDER)
INSULATOR (HOOD)
INSULATOR (RADIATOR)
INSULATOR (BATTERY)
INSULATOR (WITH BATTERY DISCONNECT SWITCH)
FENDER
REAR FENDER
REAR FENDER (TRANSFERENCE REAR LAMP)
REAR FENDER COVER
REAR FENDER COVER (REMOVABLE TYPE)
COUNTERWEIGHT
COUNTERWEIGHT (NORTH AMERICA)
COUNTERWEIGHT (WITH HANGING SEAT)
COUNTERWEIGHT (IRON WEIGHT)
COUNTERWEIGHT COVER
COUNTERWEIGHT COVER (NORTH AMERICA)
BUMPER (FOR IRON WEIGHT)
HANGING (REAR)
HANGING (REAR)(WITH BAR)
CANOPY
CANOPY
ROPS CANOPY
CANOPY (WITH FRONT WINDOW)
CANOPY (FRONT 2-PILLAR)(REMOVABLE TYPE)
LOW CANOPY (-135mm)(REINFORCEMENT)
CANOPY PARTS (WITH FRONT WINDOW)
CANOPY ROOF
STEERING WHEEL
STEERING COLUMN
SHORT SUSPENSION SEAT
MECHANICAL SUSPENSION SEAT PARTS (VINYL)
SUSPENSION SEAT (VINYL)
MECHANICAL SUSPENSION SEAT PARTS (WITHOUT AIR-CONDITIONER)(VINYL)
OPERATOR FRAME
FLOOR PLATE (STD)
FLOOR PARTS (TWIN HEATER)
SEAT SUPPORT (WITHOUT AIR-CONDITIONER)(SHORT SUSPENSION SEAT)
SEAT SUPPORT (WITHOUT AIR-CONDITIONER)(MECHANICAL SUSPENSION SEAT)
REARVIEW MIRROR
MIRROR KIT
SEAT BELT
CAB
CAB
CAB (1)
CAB (2)
CAB (3)
CAB (4)
DOOR (L)
SASH (L) ASSY
DOOR (R)
SASH (R) ASSY
WORKING LAMP
SUNVISOR
CAB PARTS
COVER (CAB)
COVER (TWIN HEATER)
OPERATOR FRAME (3 SPOOL)(3-LEVER)
FLOOR PLATE (REMOVABLE TYPE)
MECHANICAL SUSPENSION SEAT PARTS
SUSPENSION SEAT
MECHANICAL SUSPENSION SEAT PARTS (WITHOUT AIR-CONDITIONER)
MECHANICAL SUSPENSION SEAT PARTS (NORTH AMERICA)
SEAT SUPPORT (WITH AIR-CONDITIONER)(SHORT SUSPENSION SEAT)
SEAT SUPPORT (WITH AIR-CONDITIONER)
FLOOR PLATE (AIR-CONDITIONER)
FLOOR PLATE (FLOOR)
FLOOR PLATE (TWIN HEATER)
RADIO
RADIO (NORTH AMERICA)
SIGNAL PARTS
FIRE EXTINGUISHER
ELECTRIC SYSTEM
ELECTRIC PARTS (FRONT)
ELECTRIC PARTS (CANOPY)(WITH FRONT WINDOW)
ELECTRIC PARTS (CAB)
ELECTRIC PARTS (CAB)(WORK OF ANTIRUST TREATMENT, WITH AIR CONDITIONER)
ELECTRIC PARTS (MONITOR)
ELECTRIC PARTS (METER PANEL)
ELECTRIC PARTS (FLOOR)
ELECTRIC PARTS (AIR-CONDITIONER)
ELECTRIC PARTS (RIDE CONTROL)
ELECTRIC PARTS (REAR)
ELECTRIC PARTS (WITH DISCONNECT SWITCH)
CONTROL UNIT
SHIFT LEVER
WIRING (FRONT)
WIRING (METER PANEL)
WIRING (REAR)(1)
WIRING (REAR)(1)
WIRING (REAR)(ANTIRUST TREATMENT)(1)
WIRING (REAR)(2)
WIRING (REAR)(3)
BATTERY (WITHOUT DISCONNECT SWITCH)
BATTERY (BATTERY BOX ADD BOTTOM HOLE)
LARGE CAPACITY BATTERY
LARGE CAPACITY BATTERY(FOR ADD. BACK LAMP)
BATTERY PARTS (WITHOUT DISCONNECT SWITCH)
BATTERY PARTS (WITH DISCONNECT SWITCH)
BACK BUZZER
LAMP (FRONT)
LAMP (FRONT)(FOR ADDITIONAL WORK LIGHT)
LAMP (FRONT)(YELLOW)(NONCOMPATIBLE ROAD HOMOLOGAION)
LAMP (FRONT)(WITH GUARD)(VERTICAL TYPE)
LAMP (REAR)
LAMP (REAR)(NORTH AMERICA)
LAMP(REAR)(2 BACK LAMP)
LAMP (REAR)(FOR IRON WEIGHT)
REAR COMBINATION LAMP (TRANSFERENCE)
YELLOW ROTARY BEACON(ON HOOD BASE)(L,R)
AIR-CONDITIONER
AIR-CON UNIT
AIR-CONDITIONER PARTS (1)
AIR-CONDITIONER PARTS (2)
HEATER
TWIN HEATER (1-1)
TWIN HEATER (1-2)
HEATER PARTS (1-1)
HEATER PARTS (1-2)
SUPPORT (HEATER VALVE)
SUPPORT (COMPRESSOR)
SUPPORT (CONDENSER)
SUPPORT (HEATER)
SUPPORT (GRILLE)
WORK LIGHT (CANOPY REAR)(R)
WORK LIGHT (CANOPY REAR)(L, R)
YELLOW ROTARY BEACON (CAB)
YELLOW ROTARY BEACON (CANOPY)
YELLOW ROTARY BEACON (CANOPY RIGHT SIDE)(KEY SWITCH LINKED)
DIFFUSED LAMP (CAB)
ROTATING BEACON SUPPORT (CAB)
START SWITCH
BACK UP ALARM
H800-KEY
HYDRAULIC SYSTEM
FRONT PIPING (LIFT ARM)(STD)
FRONT PIPING (LIFT ARM)(STD)(NORTH AMERICA)
FRONT PIPING (LIFT ARM)(COMMON)
FRONT PIPING (LIFT ARM)(COMMON)(NORTH AMERICA)
CONTROL VALVE (2 SPOOL)
CONTROL VALVE (3 SPOOL)
CONTROL VALVE (3 SPOOL)(NORTH AMERICA)
CONTROL VALVE (3 SPOOL)(WITH-DETENT)
CONTROL VALVE (4 SPOOL)
SHOVEL CONTROL (2-SPOOL)
LEVER
SHOVEL CONTROL (2-SPOOL)(2-LEVER)
SHOVEL CONTROL (3-SPOOL)
SHOVEL CONTROL (3-SPOOL)(3-LEVER)
SHOVEL CONTROL (3-SPOOL)
SHOVEL CONTROL (4-SPOOL)
BOX CONTROL (2-SPOOL)
BOX CONTROL (3-SPOOL)
BOX CONTROL (4-SPOOL)
BOX CONTROL (2-SPOOL)(KEY LOCK)
BOX CONTROL (3-SPOOL)(KEY LOCK)
BOX CONTROL (4-SPOOL)(KEY LOCK)
BOX CONTROL (2-SPOOL)(FOR REMOVABLE COVER)
BOX CONTROL (3-SPOOL)(3-LEVER)(CAB)
BRAKE SYSTEM
BRAKE PIPING
PARKING BRAKE CONTROL
BRAKE CONTROL
BRAKE CONTROL (WITH SUPPLEMENTARY BRAKE)
DEVIDER VALVE
STEERING VALVE
STEERING PIPING
STEERING CYLINDER
STEERING CYLINDER SUPPORT
MAIN PUMP
MAIN PIPING
OIL TANK
RIDE CONTOROL PARTS
LOADER ATTACHMENT
BUCKET CYLINDER GUARD
LIFT ARM
LIFT ARM PARTS
LIFT ARM (3 SPOOL)
LIFT ARM (4 SPOOL)
LIFT ARM (SIDE PLATE SM490A)
SEMI HIGH LIFT ARM
SEMI HIGH LIFT ARM (3 SPOOL)
HIGH LIFT ARM
HIGH LIFT ARM PARTS
BELL CRANK
BELL CRANK (SEMI HIGH LIFT ARM)
BELL CRANK (HIGH LIFT ARM)
LINK (BUCKET)
LINK (BUCKET)(SEMI HIGH LIFT ARM)
LINK (BUCKET)(HIGH LIFT ARM)
FRONT PIPING (LIFT ARM)(3 SPOOL)
FRONT PIPING (LIFT ARM)(3 SPOOL)(NORTH AMERICA)
FRONT PIPING (LIFT ARM)(4 SPOOL)
FRONT PIPING (SEMI HIGH LIFT ARM)(3 SPOOL)
FRONT PIPING (HIGH LIFT ARM)
SHOVEL CYLINDER
SHOVEL CYLINDER (FOR OPTION)
AUTO LEVELLER
AUTO LEVELLER (HIGH LIFT ARM)
BUCKET AUTO LEVELLER (VIEWING)
QUICK COUPLER (MECHANICAL TYPE)
QUICK COUPLER (HYDRAULIC TYPE)
QUICK COUPLER PIPING
BUCKET 0.9m3
STOCK PILE BUCKET 0.7m3
STOCK PILE BUCKET 0.9m3
STOCK PILE BUCKET 0.9m3 (QUICK COUPLER)
STOCK PILE BUCKET 1.0m3
STOCK PILE BUCKET 1.0m3 (QUICK COUPLER)
STOCK PILE BUCKET 1.2m3
STOCK PILE BUCKET 1.2m3 (QUICK COUPLER)
GENERAL PURPOSE BUCKET (WITH BOC)(COUPLER TYPE)(STAINLESS LINER) 0.65m3 (WIDE:1890mm)
GENERAL PURPOSE BUCKET (WITH BOC)(PIN TYPE) 0.65m3 (WIDE:1326mm)
GENERAL PURPOSE BUCKET (WITH BOLT-ON CUTTING EDGE)(PIN TYPE)(HIGH LIFT ARM)0.7m3(WIDE:1800mm)
GENERAL PURPOSE BUCKET (WITH BOLT-ON CUTTING EDGE)(COUPLER TYPE) 0.9m3(WIDE:1570mm)
GENERAL PURPOSE BUCKET (WITH BOC)(PIN TYPE)(REINFORCEMENT TYPE)0.9m3(WIDE:1990mm)
GENERAL PURPOSE BUCKET (WITH BOLT-ON CUTTING EDGE)(PIN TYPE)(HIGH LIFT ARM) 0.9m3(WIDE:2210mm)
GENERAL PURPOSE BUCKET (PIN TYPE)(REINFORCEMENT TYPE)(WITHOUT HOLE)0.9m3(WIDE:1990mm)
GENERAL PURPOSE BUCKET (WITH BOC)(PIN TYPE)(ZINC-PLATED)(REINFORCEMENT TYPE)1.0m3(WIDE:1990mm)
GENERAL PURPOSE BUCKET (WITH WELDED EDGE)(PIN TYPE)(HIGH LIFT ARM)1.0m3(WIDE:1990mm)
GENERAL PURPOSE BUCKET (WITH BOC)(STAINLESS)(PIN TYPE)1.0m3(WIDE:2210mm)
GENERAL PURPOSE BUCKET (PIN TYPE)(REINFORCEMENT TYPE) 1.05m3 (WIDE:2350mm)
GENERAL PURPOSE BUCKET (WITH BOC)(PIN TYPE)(REINFORCEMENT TYPE) 1.05m3 (WIDE:1750mm)
GENERAL PURPOSE BUCKET (WITH BOC)(ZINC-PLATED)(PIN TYPE)1.1m3(WIDE:1990mm)
GENERAL PURPOSE BUCKET (STAINLESS LINER)(WITH BOLT-ON CUTTING EDGE)(PIN TYPE) 1.2m3 (WIDE:2100mm)
GENERAL PURPOSE BUCKET(BOLT-ON CUTTING EDGE)(QUICK COUPLER)(ZINC-PLATED)(PELICAN SHAPE)1.2m3(W2100㎜)
GENERAL PURPOSE BUCKET (BOC)(STAINLESS)(COUPLER TYPE)(SIDE PLATE SPECIAL SHAPE) 1.2m3 (WIDE:2210mm)
GENERAL PURPOSE BUCKET (WITH BOLT-ON CUTTING EDGE)(PIN TYPE)(ZINC-PLATED) 1.2m3 (WIDE:2350mm)
GENERAL PURPOSE BUCKET (WITH BOLT-ON CUTTING EDGE)(COUPLER TYPE)(ZINC-PLATED) 1.3m3 (WIDE:2210mm)
GENERAL PURPOSE BUCKET (WITH BOLT-ON CUTTING EDGE)(COUPLER TYPE) 1.3m3 (WIDE:2100mm)
GENERAL PURPOSE BUCKET (WITH BOLT-ON CUTTING EDGE)(COUPLER TYPE) 1.3m3 (WIDE:2350mm)
GENERAL PURPOSE BUCKET (PIN TYPE)(WITHOUT HOLE) 1.3m3 (WIDE:2200mm)
GENERAL PURPOSE BUCKET (PIN TYPE)(WITHOUT HOLE)(REINFORCEMENT TYPE) 1.2m3(WIDE:2200mm)
GENERAL PURPOSE BUCKET (WITH BOC)(PIN TYPE) 1.4m3 (WIDE:2350mm)
GENERAL PURPOSE BUCKET (WITH BOC)(PIN TYPE)(SPILL GUARD WITH WINDOW）1.4m3(WIDE:2100mm)
GENERAL PURPOSE BUCKET (WITH BOC)(ZINC-PLATED)(COUPLER TYPE)1.4m3(WIDE:2350mm)
GENERAL PURPOSE BUCKET (PIN TYPE)(WITHOUT HOLE)1.4m3(WIDE:1990mm)
GENERAL PURPOSE BUCKET (COUPLER TYPE)(WITHOUT HOLE) 1.4m3 (WIDE:1990mm)
LIVE STOCK BUCKET 1.2m3
LIVE STOCK BUCKET 1.2m3 (QUICK COUPLER)
LIVE STOCK BUCKET (COUPLER TYPE)(SPILL GUARD SPECIAL SHAPE ) 1.45m3 (WIDE:2100mm)
LIVE STOCK BUCKET (ZINC-PLATED)(WITH BOLT-ON CUTTING EDGE)(PIN TYPE) 1.2m3 (WIDE:1920mm)
PALLET FORK
PALLET FORK (WITH BACK REST)
PALLET FORK (QUICK COUPLER)
PALLET FORK (QUICK COUPLER)(WITH BACK REST)
ROLL GLUB (QUICK COUPLER (REMOTE SWITCH OPERATE TYPE))
ROLL GLUB (QUICK COUPLER (MECHANICAL TYPE))
MANURE FORK (QUICK COUPLER)
SNOW REMOVAL SPEC.
AIR CLEANER (INSIDE INTAKE TYPE)
HOOD SUPPORT (SIGNBOARD, REAR UNDER MIRROR)
TIRE CHAIN (TC)(17.5-20)
TIRE CHAIN (TC)(17.5-20)(H TYPE)
TWO SEATER CAB
CAB (1)
CAB (2)
CAB (3)
CAB (4)
GLASS
CAB PARTS (TWO SEATER CAB)
OPERATOR FRAME (TWO SEATER CAB)
SEAT SUPPORT (WITH AIR-CONDITIONER)(MECHANICAL SUSPENSION SEAT)
FLOOR PLATE (AIR-CONDITIONER)(TWO SEATER CAB)
FLOOR PLATE (HEATER STEP)
FLOOR PLATE (HEATER)(TWO SEATER CAB)
SIDE_UNDER_MIRROR
REAR-VIEW-MIRROR
REAR UNDER MIRROR
TACHOGRAPH
ELECTRIC PARTS (AIR-CONDITIONER)(TWO SEATER CAB)
AIR-CONDITIONER (TWO SEATER CAB)
AIR-CONDITIONER PARTS (1)
HEATER STEP PARTS
HEATER PARTS (TWO SEATER CAB)
SUPPORT (CONDENSER)(TWO SEATER CAB)
SUPPORT (HEATER)(TWO SEATER CAB)
SUPPORT (GRILLE)(TWO SEATER CAB)
SUPPORT (COMPRESSOR)(TWO SEATER CAB)
ANGLING PLOW (PIN JOINT)
ANGLING PLOW ASSY (PIN JOINT)
ANGLING PLOW PIPING (PIN JOINT)
ELECTRIC PARTS (ANGLING PLOW)
SIDE SLIDE ANGLING PLOW (PIN JOINT)
SIDE SLIDE ANGLING PLOW ASSY (PIN JOINT)
SIDE SLIDE ANGLING PLOW PIPING (PIN JOINT)
MALTI PLOW (PIN JOINT)
MULTI PLOW ASSY (PIN JOINT)
FRAME&BLADE GROUP (MALTI PLOW (PIN JOINT))
SLEIGH GROUP
MULTI PLOW PIPING
LAMP GROUP
MALTI PLOW INSTALLATION PIPING (PIN JOINT)
ELECTRIC PARTS (MALTI PLOW)
ANGLING PLOW FOR QUICK COUPLER (MECHANICAL TYPE)
ANGLING PLOW ASSY FOR QUICK COUPLER
ANGLING PLOW PIPING FOR QUICK COUPLER (MECHANICAL TYPE)
SIDE SLIDE ANGLING PLOW FOR QUICK COUPLER (MECHANICAL TYPE)
SIDE SLIDE ANGLING PLOW ASSY FOR QUICK COUPLER
SIDE SLIDE ANGLING PLOW PIPING FOR QUICK COUPLER (MECHANICAL TYPE)
ELECTRIC PARTS (SIDE SLIDE ANGLING PLOW FOR QUICK COUPLER)
MALTI PLOW FOR QUICK COUPLER (MECHANICAL TYPE)
MULTI PLOW ASSY FOR QUICK COUPLER
FRAME&BLADE GROUP (MALTI PLOW FOR QUICK COUPLER)
MALTI PLOW INSTALLATION PIPING FOR QUICK COUPLER (MECHANICAL TYPE)
ANGLING PLOW FOR QUICK COUPLER (HYDRAULIC TYPE)
ANGLING PLOW PIPING FOR QUICK COUPLER (HYDRAULIC TYPE)
SIDE SLIDE ANGLING PLOW FOR QUICK COUPLER (HYDRAULIC TYPE)
SIDE SLIDE ANGLING PLOW PIPING FOR QUICK COUPLER (HYDRAULIC TYPE)
MALTI PLOW FOR QUICK COUPLER (HYDRAULIC TYPE)
MALTI PLOW INSTALLATION PIPING FOR QUICK COUPLER (HYDRAULIC TYPE)
STOPPER (ANP,SAP)(PIN JOINT)
STOPPER (ANP,SAP)(QUICK COUPLER TYPE)
SIGNBOARD
NAME PLATE (INSIDE INTAKE-TYPE AIR CLEANER)
NAME PLATE (ANP,SAP)
NAME-PLATE (QUICK COUPLER)
TOOLS
TOOLS
NAME PLATE
NAME PLATE (1)
NAME PLATE (1)(NORTH AMERICA)
NAME PLATE (2)
NAME PLATE (2)(NORTH AMERICA)
NAME PLATE (3)
NAME PLATE (3)(NORTH AMERICA)
NAME PLATE (4)
NAME PLATE (ROTARY BEACON)
NAME PLATE (DIFFUSED LAMP)
PARTS INDEX
PARTS INDEX
