Schematic Caterpillar 336F XE Excavator (Electrical System) | UENR5223-06

Features

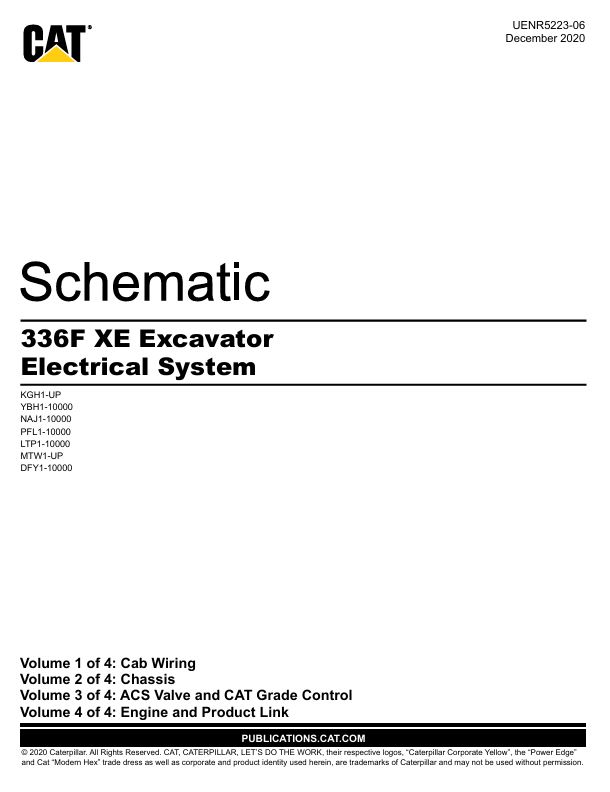

Cover Page
Information
Component Location
Vol 1 – Cab
Vol 2 – Chassis
Vol 3 – ACS Valve and CAT Grade Control
Vol 4 – Engine and Product Link
Connector Location
Vol 1 – Cab
Vol 2 – Chassis
Vol 3 – ACS Valve and CAT Grade Control
Vol 4 – Engine and Product Link
Schematics
Function Isolation Tools
Grids On/Off
All Circuits Off
All Circuits On

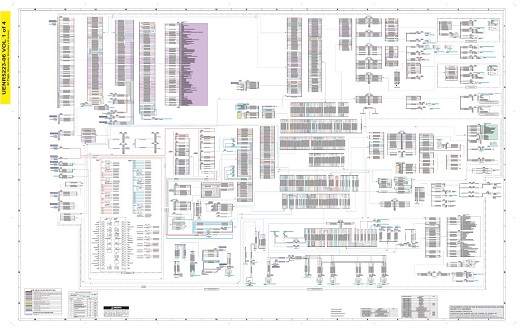

Vol 1 – Cab
Unspecified Circuit
Black (Ground)
032 (Red) (Battery Power)
640 (Blue) (Key Power)
305 (Lt Blue) (Converter 12v Out)
021 (Orange) (Starting)
258 (Dk Purple) (Transmission)
346 (Med Green) (Monitor)
430 (Dk Gray) (Machine Security)
509 (Lt Pink) (Engine Master)
613 (Dk Yellow) (Heat/AC)
4665 (Tan) (Turn/Wiper/Washer)
CON 346 (CAT D.L.)
CON 509 (J1939/1587 D.L.)
SUB 522 (Lt Purple) (Aftertreatment)
CON 141 (CAN “C” D.L.)
CON 305 (CAN “D” D.L.)
Vol 2 – Chassis
Unspecified Circuit
Black (Ground)
032 (Red) (Battery Power)
640 (Blue) (Key Power)
021 (Orange) (Starting)
190 (Dk Pink) (Start Aid)
258 (Dk Purple) (Transmission)
346 (Med Green) (Monitor)
509 (Lt Pink) (Engine Master)
613 (Dk Yellow) (Heat/AC)
4665 (Tan) (Turn/Wiper/Washer)
CON 346 (CAT D.L.)
CON 509 (J1939/1587 D.L.)
CON 522 (CAN “B” D.L.)
CON 141 (CAN “C” D.L.)
CON 5767 (Olive Green) (DEF)
SUB 522 (Lt Purple) (Aftertreatment)
Vol 3 – ACS Valve and CAT Grade Control
Unspecified Circuit
Black (Ground)
032 (Red) (Battery Power)
640 (Blue) (Key Power)
258 (Dk Purple) (Transmission)
5767 (Olive Green) (Misc Control 2)
CON 032 (RS232/485 D.L.)
CON 509 (J1939/1587 D.L.)
CON 190 (CAN “A” D.L.)
CON 522 (CAN “B” D.L.)
CON 141 (CAN “C” D.L.)
SUB 651 (Blue Gray) (Misc Control 1)
Vol 4 – Engine and Product Link
Unspecified Circuit
Black (Ground)
032 (Red) (Battery Power)
640 (Blue) (Key Power)
346 (Med Green) (Monitor)
509 (Lt Pink) (Engine Master)
CON 346 (CAT D.L.)
CON 509 (J1939/1587 D.L.)
CON 032 (RS232/485 D.L.)
CON 522 (CAN “B” D.L.)
CON 141 (CAN “C” D.L.)
CON 305 (CAN “D” D.L.)
CON 5767 (Olive Green) (DEF)
SUB 522 (Lt Purple) (Aftertreatment)
Machine Views
Vol 1 – Cab
Operator Station Front
Operator Seat Wiring
Operator Station Bottom View
Operator Station Left Side
Operator Station Right Side
Vol 2 – Chassis
Battery Compartment Wiring
Chassis Rear View
Control Valve Wiring
Engine Front View
Engine Rear View
Hydraulic Pump and Tank Circuit
Refueling Pump
Vol 3 – ACS Valve and CAT Grade Control
ACS Valve Front
ACS Valve Left Side
ACS Valve Right Side
Boom Wiring
Cab Wiring
Chassis Wiring
Vol 4 – Engine and Product Link
AfterTreatment
Engine Front View
Chassis Right View
Engine Rear View
Product Link Wiring
Pump Tank Unit
