Schematic Caterpillar 365C Excavator | RENR7306-02

Features

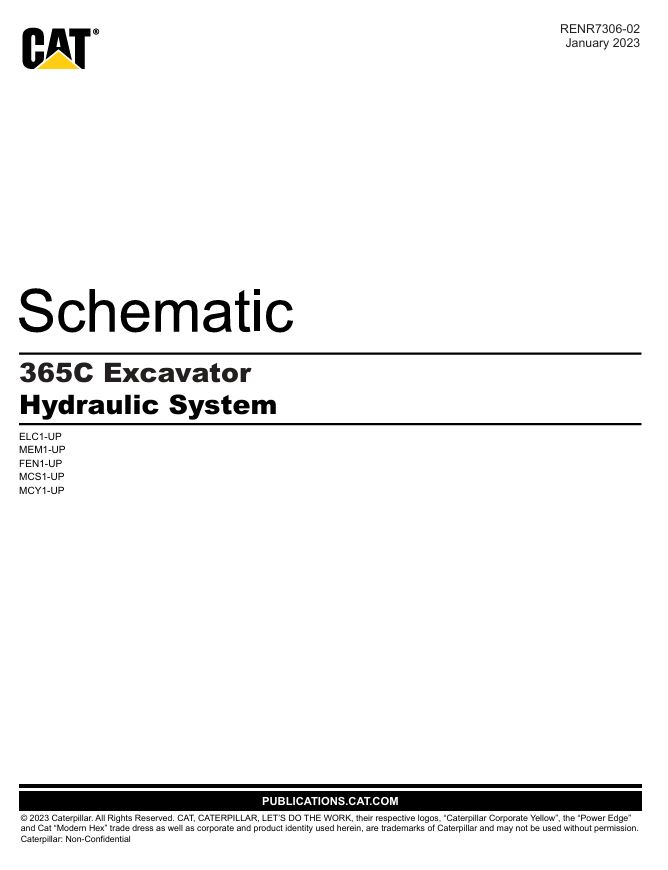

Cover Page
Information
Component Location
Tap Location
Schematic
Function Isolation Tools
Grids On/Off
All Circuits Off
All Circuits On
Pilot Pump Output (021 Orange)
Main Pump Output (032 Red)
Main Pump Load Sense Circuit (258 Dk Purple)
Drain / Return To Supply (346 Med Green)
Supply Line (347 Dk Green)
Stick Cylinder Control Circuit (464 Brown)
LH Travel Motor Control Circuit (500 Med Pink)
Attachment Control Circuit (509 Lt Pink)
Swing Motor Control Circuit (522 Lt Purple)
Drain / Return To Tank (577 Lt Green Drain / Return Line)
Swing Brake Control Circuit (613 Dk Yellow)
Swing Pump Output (640 Blue)
Travel Speed Control Circuit (651 Blue Gray)
Bucket Control Circuit (4665 Tan)
RH Travel Motor Control Circuit (5655 Lt Gray)
Boom Cylinder Control Circuit (5767 Olive Green)
Fan Pump Output (CON 305 Lt Blue/Black Stripe)
Main Pump Load Sense Pressure (SUB 522 Lt Purple Stripe)
Machine Views
Machine Component Locations
Main Pump Gp
Pilot Manifold
Swing Pump Gp
