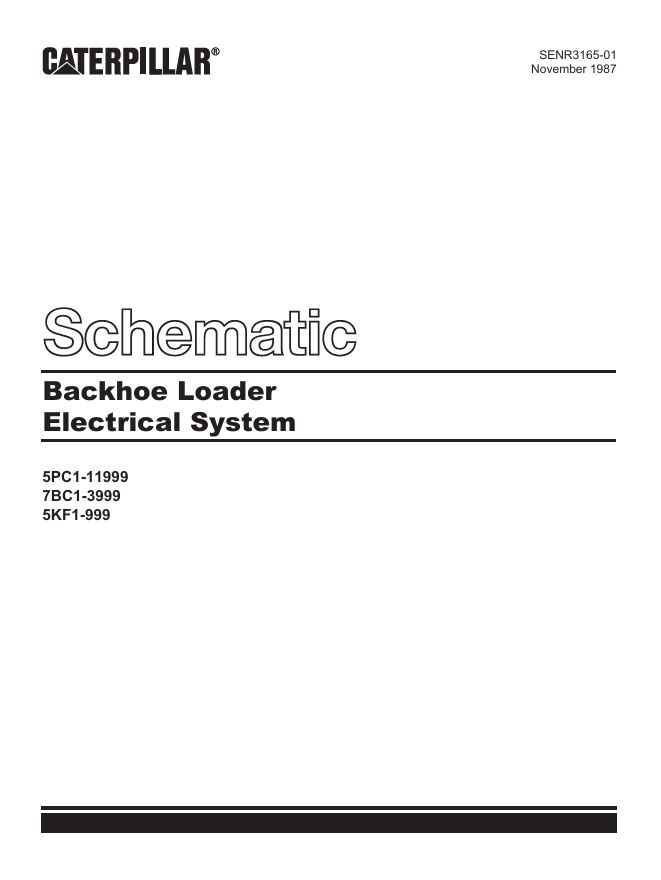

Schematic Caterpillar 416, 426, 428, 436, 438 Backhoe Loaders Electrical System | SENR3165-01

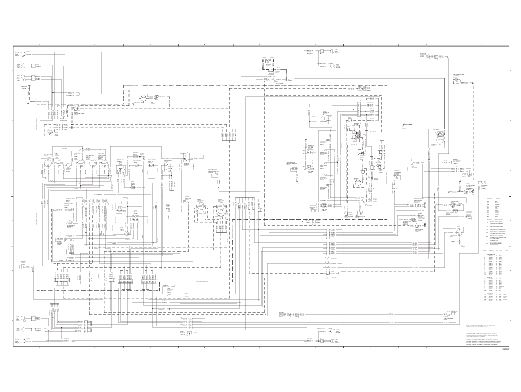

THIS SCHEMATIC IS FOR THE 416, 426, 428, 436 & 438 BACKHOE USA (6T7621 CHG 05)
COMPONENTS ARE SHOWN INSTALLED ON A FULLY OPERABLE MACHINE WITH THE KEY AND ENGINE OFF, AND XMSN SHIFTER IN NEUTRAL

UNLESS OTHERWISE SPECIFIED: ALL WIRE IS 16 GAGE
NOTE A: NORMALLY OPEN BEFORE REFRIGERANT CHARGE
NOTE B: NORMALLY CLOSED WHEN BRAKE IS DEPRESSED
NOTE C: FUSES 10A-3K8787 15A-8M8948 30A-8M8947
