Schematic Caterpillar 432 and 444 Backhoe Loader Hydraulic System | M0116307-00

Features

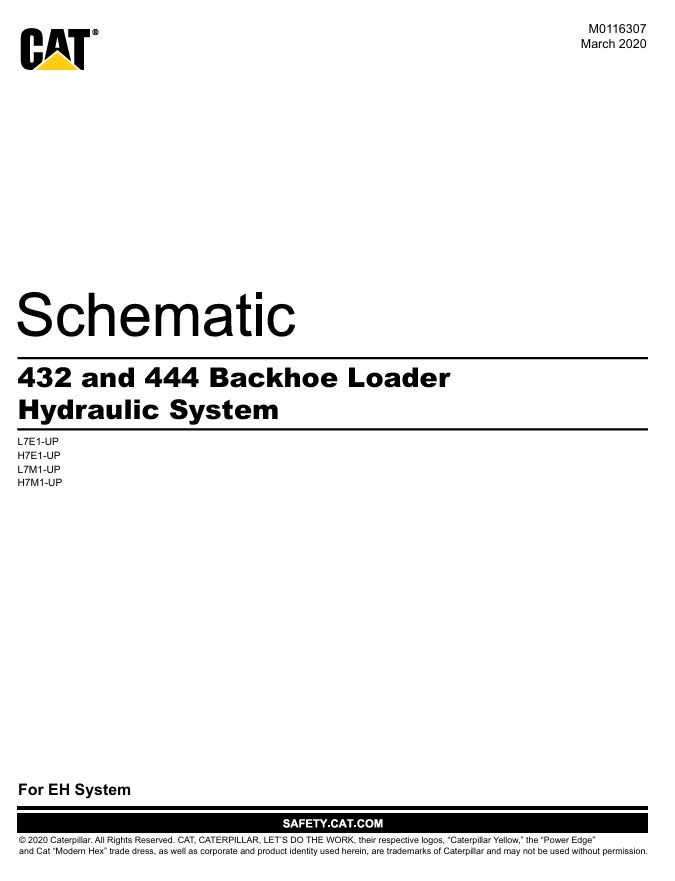

Cover Page
Information
– Component Location
– Tap Location
Schematic
– Function Isolation Tools
— Grids On/Off
— All Circuits Off
— All Circuits On
— 021 (Orange) (Pilot Control)
— 032 (Red) (Main Pump Output)
— 141 (Lt Orange) (Tilt Control)
— 190 (Dk Pink) (Swing Control)
— 258 (Dk Purple) (Load Sense Control)
— 305 (Lt Blue) (Sideshift Control)
— 346 (Med Green) (Brake Control)
— 347 (Dk Green) (Supply Line)
— 430 (Dk Gray) (Auxiliary Control)
— 464 (Brown) (Stick Control)
— 500 (Med Pink) (Lift Control)
— 509 (Lt Pink) (Power Sideshift Control)
— 522 (Lt Purple) (Coupler Control)
— 577 (Lt Green) (Drain/Return Line)
— 613 (Dk Yellow) (Stabilizer Control)
— 651 (Blue Gray) (Extendable Stick Control)
— 4665 (Tan) (Bucket Control)
— 5655 (Lt Gray) (Coupler HOE Control)
— 5767 (Olive Green) (Boom Control)
— CON 021 (Orange/Black Stripe) (Wheel Steering Control)
Machine Views
– Extendable Stick
– Machine Front View
– Machine Left Side View
– Machine Rear View
– Machine Right Side View
– Machine Top View
– Quick Coupler
– Wheel Steering
