Service manual Bobcat S850 ATF411001 ATF511001 & Up | 6990257

9,99 $

Format: PDF
Type: Service Manual
Pages: 1084
Size: 43,6 Mb
No.: 6990257enUS (02-18) (G)

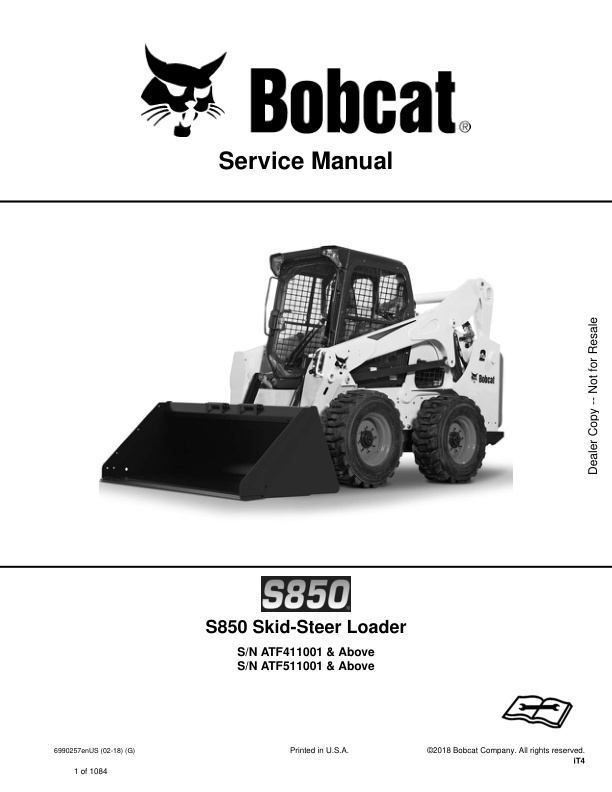

Bobcat S850 ATF411001 ATF511001 & Up 6990257 (Preview)

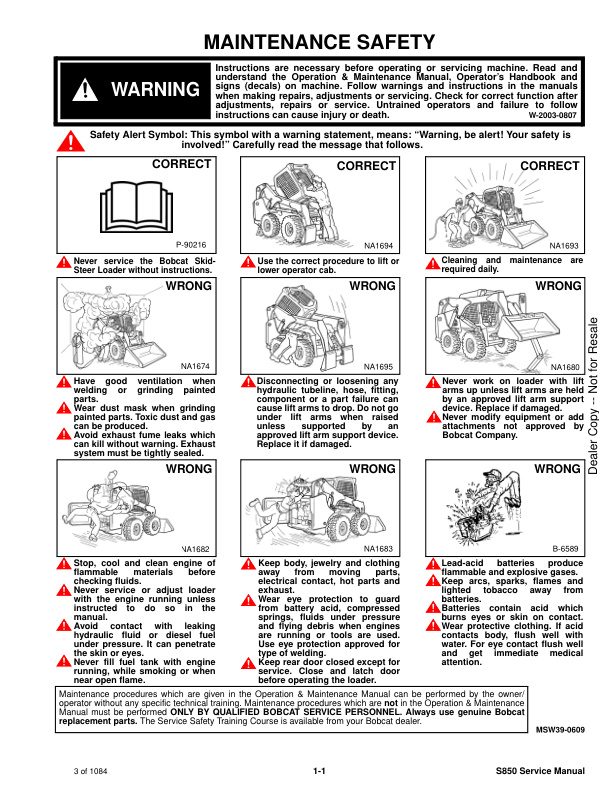

MAINTENANCE SAFETY

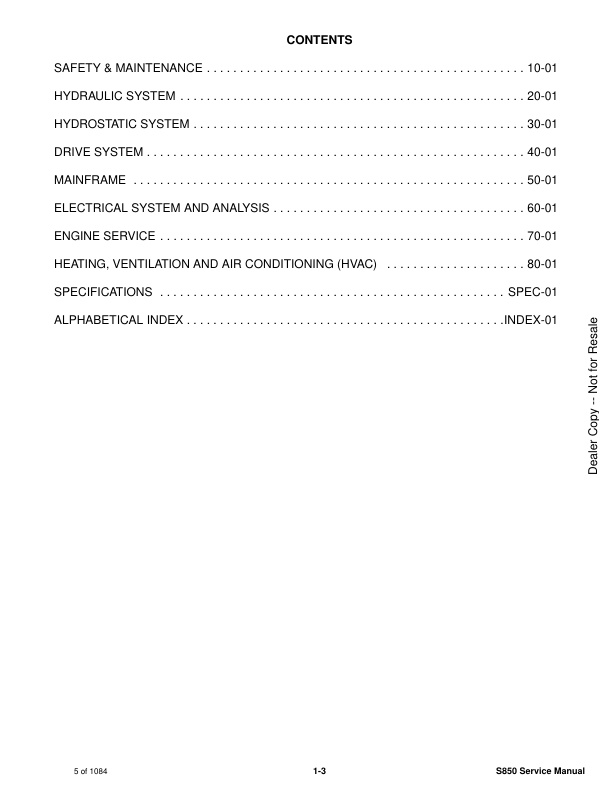

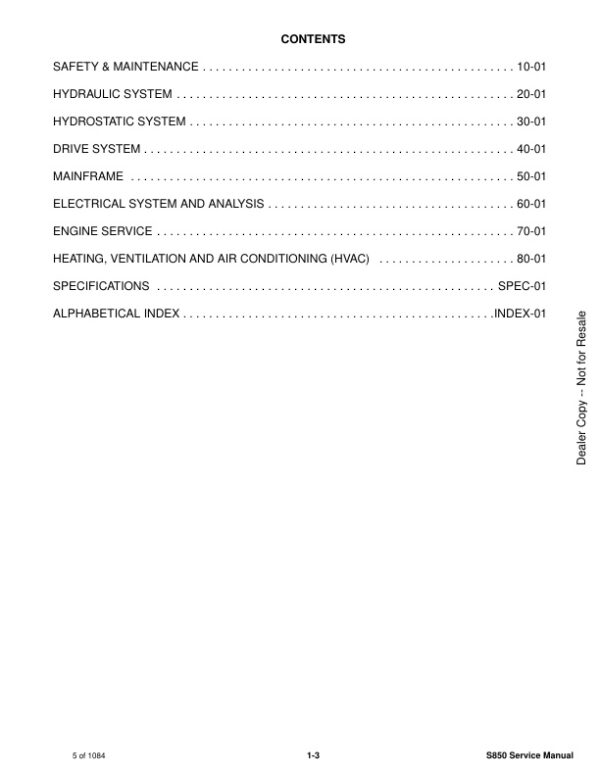

CONTENTS

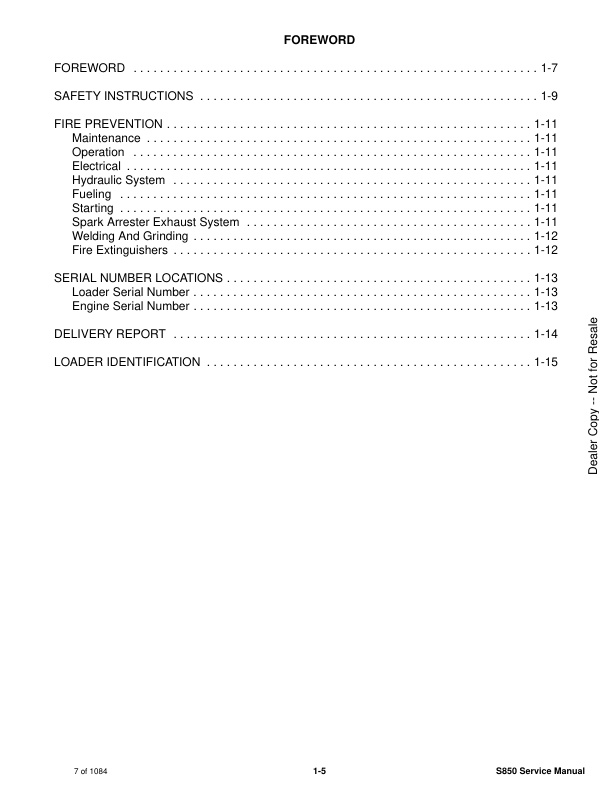

FOREWORD

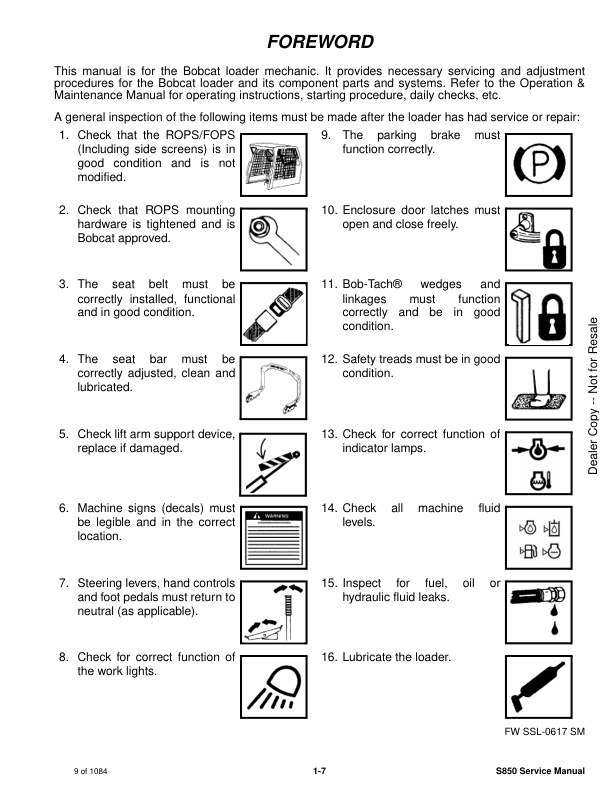

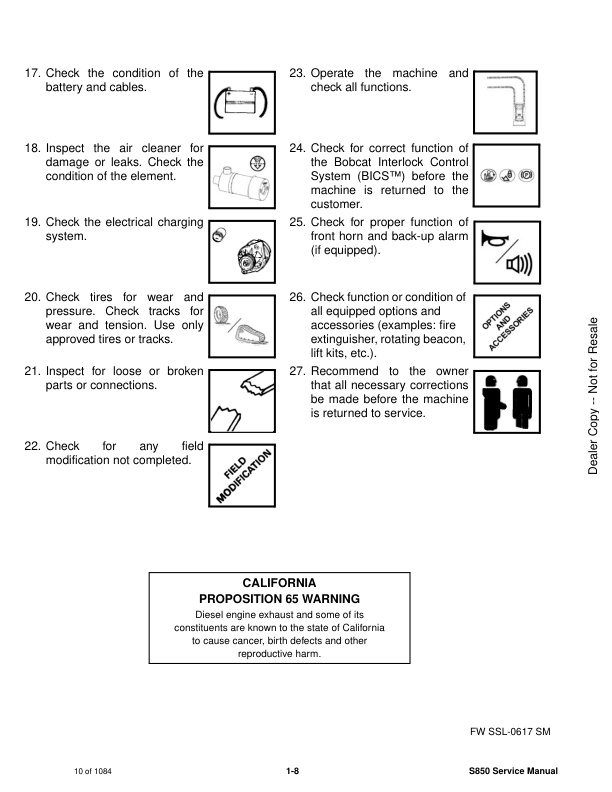

FOREWORD
SAFETY INSTRUCTIONS
FIRE PREVENTION
Maintenance
Operation
Electrical
Hydraulic System
Fueling
Starting
Spark Arrester Exhaust System
Welding And Grinding
Fire Extinguishers
SERIAL NUMBER LOCATIONS
Loader Serial Number
Engine Serial Number
DELIVERY REPORT
LOADER IDENTIFICATION
SAFETY & MAINTENANCE
LIFTING AND BLOCKING THE LOADER
Procedure
LIFT ARM SUPPORT DEVICE
Description
Installing
Removing
OPERATOR CAB
Description
Raising
Lowering
Cab Door Sensor
Special Applications Kit
Special Applications Kit Inspection And Maintenance
Forestry Door And Window Kit
Forestry Door And Window Kit Inspection And Maintenance
TRANSPORTING THE LOADER ON A TRAILER
Loading And Unloading
Fastening
TOWING THE LOADER
Procedure
REMOTE START TOOL KIT – MEL1563
Remote Start Tool – MEL1563
Service Tool Harness Communicator – MEL1566
Remote Start Procedure
REMOTE START TOOL (SERVICE TOOL) KIT – 7217666
Description
Remote Start Tool (Service Tool) – 7022042
Loader Service Tool Harness – 6689747
Computer Service Tool Harness – 6689746
Remote Start Procedure
DIAGMASTER (SERVICE TOOL) KIT – 7024161
Diagmaster (Service Tool)
DST-i LED Table
DST-i Operation Status And Display Specification
Diagmaster (Service Tool) Procedure
SERVICE SCHEDULE
Maintenance Intervals
ENGINE AIR CLEANER
Replacing Filter Elements
ENGINE COOLING SYSTEM
Maintenance Platform
Cleaning
Checking And Adding Coolant
Removing And Replacing Coolant
FUEL SYSTEM
Fuel Specifications
Biodiesel Blend Fuel
Filling The Fuel Tank
Fuel Filter
Removing Air From The Fuel System
ENGINE LUBRICATION SYSTEM
Checking And Adding Engine Oil
Engine Oil Chart
Removing And Replacing Oil And Filter
HYDRAULIC / HYDROSTATIC SYSTEM
Checking And Adding Fluid
Hydraulic / Hydrostatic Fluid Chart
Removing And Replacing Hydraulic Fluid
Removing And Replacing Hydraulic / Hydrostatic Filter
Removing And Replacing Hydraulic Charge Filter
Replacing Reservoir Breather Cap
FINAL DRIVE TRANSMISSION (CHAINCASE)
Checking And Adding Fluid
Removing And Replacing Fluid
BOB-TACH (HAND LEVER)
Inspection And Maintenance
BOB-TACH (POWER)
Inspection And Maintenance
LUBRICATING THE LOADER
Lubrication Locations
TIRE MAINTENANCE
Wheel Nuts
Rotating
Mounting
PIVOT PINS
Inspection And Maintenance
LOADER STORAGE AND RETURN TO SERVICE
Storage
Return To Service
STOPPING THE ENGINE AND LEAVING THE LOADER
Procedure
EMERGENCY EXIT
Rear Window Identification
Rear Window Removal (Latches)
Rear Window Removal (Rubber Cord)
External Access (Rear Window With Latches)
External Access (Rear Window With Rubber Cord)
Front Door
SEAT BELT
Inspection And Maintenance
HYDRAULIC SYSTEM
HYDRAULIC / HYDROSTATIC SCHEMATICS
HYDRAULIC SYSTEM INFORMATION
Glossary Of Hydraulic / Hydrostatic Symbols
Troubleshooting
CYLINDER (LIFT)
Testing
Removal And Installation
Parts Identification (Earlier Models)
Parts Identification (Later Models)
Disassembly
Assembly
CYLINDER (TILT)
Testing
Removal And Installation
Base End Pivot Pin Removal And Installation
Parts Identification (Earlier Models)
Parts Identification (Later Models)
Disassembly
Assembly
CYLINDER (BOB-TACH)
Testing
Removal And Installation
Parts Identification
Disassembly
Assembly
MAIN RELIEF VALVES
Description
Testing
Main Relief Valve Adjustment
Main Relief Valve Removal And Installation
Auxiliary Relief Valve Adjustment
Auxiliary Relief Valve Removal And Installation
HYDRAULIC CONTROL VALVE (SJC)
Description
Removal And Installation
Actuator Removal And Installation (In Loader)
Actuator Removal And Installation (Out Of Loader)
Identification Chart
Mount Bracket Removal And Installation
Lift Load Check Valve Removal And Installation
Load Check Valve Removal And Installation (Tilt And Auxiliary)
Anti-Cavitation Valve Removal And Installation (Lift, Rod End)
Port Relief / Anti-Cavitation Valve Removal And Installation (Lift, Base End)
Port Relief / Anti-Cavitation Valve Removal And Installation (Tilt, Base End)
Port Relief / Anti-Cavitation Valve Removal And Installation (Tilt, Rod End)
Port Relief Valve Removal And Installation
Plug Removal And Installation
End Cap Block Removal And Installation
Lift Spool Removal And Installation
Lift Spool Disassembly And Assembly
Tilt Spool Removal And Installation
Auxiliary Spool Removal And Installation
Auxiliary Solenoid Removal And Installation
Solenoid Removal And Installation
Lock Valve Removal And Installation
Lift Arm Bypass Orifice Removal And Installation
Main Relief Valve Removal And Installation
Auxiliary Relief Valve Removal And Installation
Check Valve Removal And Installation
HYDRAULIC CONTROL VALVE (SCPA)
Description
Removal And Installation
Mount Bracket Removal And Installation
Identification Chart
Lift Load Check Valve Removal And Installation
Load Check Valve Removal And Installation (Tilt And Auxiliary)
Anti-Cavitation Valve Removal And Installation (Lift, Rod End)
Port Relief / Anti-Cavitation Valve Removal And Installation (Lift, Base End)
Port Relief / Anti-Cavitation Valve Removal And Installation (Tilt, Base End)
Port Relief / Anti-Cavitation Valve Removal And Installation (Tilt, Rod End)
Port Relief Valve Removal And Installation
Plug Removal And Installation
Rubber Boot Removal And Installation
End Cap Block Removal And Installation
Lift Spool And Detent Removal And Installation
Tilt Spool Removal And Installation
Auxiliary Spool Removal And Installation
Auxiliary Solenoid Removal And Installation
Solenoid Removal And Installation
Lock Valve Removal And Installation
Lift Arm Bypass Orifice Removal And Installation
Main Relief Valve Removal And Installation
Auxiliary Relief Valve Removal And Installation
Check Valve Removal And Installation
LIFT ARM BYPASS CONTROL VALVE
Description
Testing
Removal And Installation
Bracket Removal And Installation
Disassembly And Assembly
HYDRAULIC PUMP
Description
Pump Test At Quick Couplers
Direct Pump Test (Standard Section)
Direct Pump Test (Charge Section)
Removal And Installation
Hydraulic Pump Startup
Parts Identification
Disassembly And Assembly
HYDRAULIC PUMP (HIGH FLOW)
Description
Pump Test At Quick Couplers
Direct Pump Test (Standard Section)
Direct Pump Test (Charge Section)
Direct Pump Test (High Flow Section)
High Flow Relief Valve Adjustment
High Flow Relief Valve Removal And Installation
Solenoid Removal And Installation
Removal And Installation
Hydraulic Pump Startup
Parts Identification
Disassembly And Assembly
HYDRAULIC / HYDROSTATIC FILTERS
Description
Housing Removal And Installation
HYDRAULIC FLUID RESERVOIR
Description
Removal And Installation
Hydraulic Fluid Screen
OIL COOLER
Description
Removal And Installation
BUCKET POSITION VALVE
Description
Solenoid Removal And Installation
Solenoid Testing
Removal And Installation
Disassembly And Assembly
REAR AUXILIARY DIVERTER VALVE
Description
Solenoid Testing
Removal And Installation
Disassembly And Assembly
BOB-TACH (POWER) BLOCK (EARLIER MODELS)
Description
Removal And Installation
Disassembly And Assembly
BOB-TACH (POWER) BLOCK (LATER MODELS)
Description
Testing Relief Valve
Removal And Installation
Disassembly And Assembly
FRONT AUXILIARY HYDRAULIC COUPLER BLOCK
Description
Removal And Installation
Disassembly And Assembly (FFI/FI)
Disassembly And Assembly (FFH/FH)
HYDROSTATIC SYSTEM
HYDROSTATIC SYSTEM INFORMATION
Description
Troubleshooting
HYDROSTATIC MOTOR (TWO-SPEED) (S/N ATF411001 – ATF411599)
Description
Removal And Installation
Parts Identification
Disassembly
Assembly
HYDROSTATIC MOTOR (TWO-SPEED) (S/N ATF411600 & ABOVE AND S/N ATF511001 & ABOVE)
Description
Removal And Installation
Parts Identification
Disassembly
Assembly
HYDROSTATIC MOTOR CARRIER (SJC AND SCPA)
Description
Removal And Installation
Parts Identification
Disassembly
Assembly
CHARGE PRESSURE
Description
Testing
Sender Removal And Installation
Adjusting
HYDROSTATIC PUMP (SJC AND SCPA)
Description
Hydraulic Controller Removal And Installation
Removal And Installation
Hydrostatic Pump Startup
Parts Identification
High Pressure Relief And Bypass Valve
Charge Relief Valve
Disassembly
Inspection
Assembly
Mechanical Neutral Adjustment
Hydraulic Controller Neutral Adjustment
DRIVE BELT
Belt Adjustment
Stop Adjustment
Belt Replacement
Tensioner Pulley Removal And Installation
Tensioner Pulley Disassembly And Assembly
TWO-SPEED / BRAKE VALVE (S/N ATF411001 – ATF411599)
Description
Valve Block Removal And Installation
Valve Block Disassembly And Assembly
TWO-SPEED / BRAKE VALVE (S/N ATF411600 & ABOVE AND S/N ATF511001 & ABOVE)
Description
Valve Block Removal And Installation
Valve Block Disassembly And Assembly
DRAIN MANIFOLD
Description
Drain Manifold Removal And Installation
DRIVE SYSTEM
BRAKE (TWO-SPEED)
Description
DRIVE COMPONENTS
Description
Axle Seal Removal And Installation
Axle, Sprocket And Bearings Removal And Installation
Chain Removal And Installation
CHAINCASE
Description
Front Cover Removal And Installation
Center Cover Removal And Installation
Rear Cover Removal And Installation
MAINFRAME
SEAT BAR
Description
Removal And Installation
Disassembly And Assembly
Compression Spring Disassembly And Assembly
OPERATOR CAB
Gas Spring Removal And Installation
Gas Spring Bracket Disassembly And Assembly
Removal And Installation
OPERATOR SEAT (SUSPENSION)
Removal And Installation
Slide Rail Removal And Installation
Seat Belt Removal And Installation
Lower Cushion Removal
Lower Cushion Installation
Back Cushion Removal And Installation
Shock Removal And Installation
3-Point Seat Belt Removal And Installation
BOB-TACH (HAND LEVER)
Description
Removal And Installation
Lever And Wedge Disassembly And Assembly
Pivot Pin Bushing And Seal Removal And Installation
BOB-TACH (POWER)
Description
Removal And Installation
Lever And Wedge Disassembly And Assembly
Pivot Pin Bushing And Seal Removal And Installation
LIFT ARMS
Stabilizer Bar Removal And Installation
Link Removal And Installation
Removal And Installation
REAR GRILLE
Removing
Installing
Shield Removal And Installation
REAR DOOR (TAILGATE)
Removal And Installation
Striker Removal And Installation
Striker Disassembly And Assembly
Striker (Adjusting)
Latch Removal And Installation (Earlier Models)
Latch Removal And Installation (Later Models)
FUEL TANK
Removal And Installation
Fuel Level Sender Removal And Installation
Fuel Fill Screen Removal And Installation
FUEL TANK (AUXILIARY)
Removal And Installation
CONTROL PEDALS AND LINKAGES (SCPA)
Description
Pedal Removal And Installation
Linkage Removal And Installation
Pedal (Adjusting)
Floor Pan Removal And Installation
CONTROL PANEL (SJC)
Description
Removal And Installation
CONTROL PANEL (SCPA)
Description
Removal And Installation
CONTROL HANDLE / LEVER (SJC)
Description
Joystick Testing
Joystick Removal And Installation
CONTROL HANDLE / LEVER (SCPA)
Description
Steering Handle Testing
Steering Handle Removal And Installation
ACCESS PANEL (INSIDE) (SJC)
Removal And Installation (Left)
Removal And Installation (Right)
ACCESS PANEL (INSIDE) (SCPA)
Removal And Installation (Left)
Removal And Installation (Right)
WINDOW (REAR)
Rear Window Identification
Removal (Rubber Cord)
Installation (Rubber Cord)
Removal And Installation (Latches)
Disassembly And Assembly (Latches)
WINDOW (TOP)
Removal And Installation
WINDOW (SIDE)
Removal And Installation
CAB DOOR
Description
Removal And Installation
Disassembly And Assembly
Aligning
Adjusting
Checking Operation
ARMREST
Description
Removal And Installation
Disassembly And Assembly
LEFT SIDE LOWER PANEL
Removal And Installation
Disassembly And Assembly
RIGHT SIDE LOWER PANEL
Removal And Installation
Disassembly And Assembly
HEADLINER
Removal And Installation
ELECTRICAL SYSTEM AND ANALYSIS
ELECTRICAL SCHEMATICS
ELECTRICAL SYSTEM INFORMATION
Glossary Of Electrical Symbols
Deluxe Cab Harness Connectors (Earlier Models)
Deluxe Cab Harness Connectors (Later Models)
Mainframe Harness Connectors
Engine Harness Connectors
Description
Troubleshooting
Fuse And Relay Location / Identification
Solenoid Testing
BATTERY
Removal And Installation
Servicing
Using A Booster Battery (Jump Starting)
ALTERNATOR
Belt Adjustment
Belt Replacement
Charging System Inspection
Alternator Voltage Testing
Low Voltage Testing
High Voltage Testing
Removal And Installation
Parts Identification
STARTER
Testing
Removal And Installation
Parts Identification
INSTRUMENT PANELS
Left Panel
Display Screen
Right Panel (Standard Key Panel)
Right Panel (Keyless Start Panel)
Right Panel (Deluxe Instrumentation Panel)
Left Switch Panel
Right Switch Panel
Left Side Lower Panel
Right Side Lower Panel
Left Panel Removal And Installation
Right Panel Removal And Installation
Key Switch Disassembly And Assembly
Alarm Disassembly And Assembly
Left Switch Panel Removal And Installation
Right Switch Panel Removal And Installation
LIGHTS
Front Removal And Installation
Rear Removal And Installation
Cab Light Removal And Installation (Earlier Models)
Cab Light Removal And Installation (Later Models)
BOBCAT CONTROLLERS (GATEWAY AND AUXILIARY)
Description
Connector Identification
Removal And Installation
BOBCAT CONTROLLER (ACS)
Description
Connector And Wire Identification
Removal And Installation
BOBCAT CONTROLLER (SJC) (DRIVE)
Description
Connector Identification
Removal And Installation
BOBCAT CONTROLLER (SCPA) (DRIVE)
Description
Connector Identification
Removal And Installation
ENGINE CONTROL UNIT (ECU)
Description
Cleaning
Removal And Installation
ECU Replacement
DIAGNOSTIC SERVICE CODES
Viewing Service Codes
Service Codes List
DIAGMASTER DIAGNOSTIC TROUBLE CODES (DTC)
Viewing Trouble Codes
BOBCAT INTERLOCK CONTROL SYSTEM (BICS™)
Description
Inspecting The BICS™ (Engine STOPPED – Key ON)
Inspecting Deactivation Of The Auxiliary Hydraulics System (Engine STOPPED – Key ON)
Inspecting The Seat Bar Sensor (Engine RUNNING)
Inspecting The Traction Lock (Engine RUNNING)
Inspecting The Lift Arm Bypass Control
Inspecting Deactivation Of Lift And Tilt Functions (SJC)
Troubleshooting
SEAT BAR SENSOR
Description
Troubleshooting
Testing
Removal And Installation
Bobcat Interlock Control System (BICS™) Circuit Test
TRACTION LOCK
Description
Troubleshooting
Inspecting
ELECTRICAL / HYDRAULIC CONTROLS (SJC)
Identification Chart
Description
Identification Chart ACD Group 0
Identification Chart ACD Group 1
Identification Chart ACD Group 2
Identification Chart ACD Group 3
ELECTRICAL / HYDRAULIC CONTROLS (SCPA)
Identification Chart
Description
Identification Chart ACD Group 0
Identification Chart ACD Group 1
Identification Chart ACD Group 2
Identification Chart ACD Group 3
SERVICE PC (LAPTOP COMPUTER)
Connecting Remote Start Tool
Connecting Remote Start Tool (Service Tool)
Connecting Diagmaster (Service Tool)
Connecting Remote Parked Regeneration Kit
CALIBRATION
Description
Actuator Testing
Lift And Tilt Calibration (SJC)
Hydrostatic Pump Calibration (SJC)
Hydrostatic Pump Calibration (SCPA)
STEERING DRIFT COMPENSATION (OPERATOR MODE)
Description
Operation
STEERING DRIFT COMPENSATION (SERVICE MODE)
Description
Operation
CONTROL PANEL SETUP
Right Panel Setup (Deluxe Instrumentation Panel)
PASSWORD SETUP (DELUXE INSTRUMENTATION PANEL)
Password Description
Changing The Owner Password
Changing The User Passwords
Password Lockout Feature
PASSWORD SETUP (KEYLESS START PANEL)
Password Description
Changing The Owner Password
Password Lockout Feature
MAINTENANCE CLOCK
Description
Setup
Reset
BACK-UP ALARM SYSTEM
Description
Inspecting
Troubleshooting (Joystick)
Alarm Removal And Installation
FRONT HORN
Removal And Installation
Troubleshooting
Troubleshooting (Joystick)
ENGINE SERVICE
ENGINE INFORMATION
Description
Specifications
Sensor Location
Torque Values
Troubleshooting
Engine Removal And Installation
Engine Mount Replacement
Compression – Testing
Injector Signal – Testing
ENGINE SPEED CONTROL (HAND)
Removal And Installation
ENGINE SPEED CONTROL (FOOT)
Removal And Installation
Disassembly And Assembly
Foot Throttle Calibration
DIESEL PARTICULATE FILTER (DPF) SYSTEM
Description
Removal And Installation
DPF Regeneration
DPF Regeneration Table
Operation (Standard Switch)
Operation (Optional Inhibit Switch Kit)
Operation (Optional Remote Parked Regeneration Kit)
Remote Parked Regeneration (Level 3)
DPF Service Regeneration (Level 4)
DPF Cleaning (Level 5)
AIR CLEANER
Housing Removal And Installation
ENGINE COOLING SYSTEM
Radiator Removal And Installation
Hydraulic Fan Description
Lower Fan Duct Removal And Installation
Hydraulic Fan Motor Assembly Removal And Installation (Earlier Models)
Fan Removal And Installation (Earlier Models)
Hydraulic Fan Motor Removal And Installation (Earlier Models)
Hydraulic Fan Disassembly And Assembly (Earlier Models)
Hydraulic Fan Motor Assembly Removal And Installation (Later Models)
Fan Removal And Installation (Later Models)
Hydraulic Fan Motor Removal And Installation (Later Models)
Hydraulic Fan Disassembly And Assembly (Later Models)
Blower Housing Removal And Installation
Water Pump Removal And Installation
Water Pump Disassembly And Assembly
Thermostat Housing Removal And Installation
Thermostat – Checking
LUBRICATION SYSTEM
Oil Pan Removal And Installation
Oil Pump Removal And Installation
Oil Pump Inspection
Oil Filter Cooler Removal And Installation
Engine Oil Pressure – Testing
Crankcase Ventilation Filter Removal And Installation
FUEL SYSTEM
Supply Pump Removal
Supply Pump Installation
Supply Pump Difference Learning
Fuel Cooler Bypass Valve Removal And Installation
Fuel Recirculation Valve Removal And Installation
Fuel Rail Assembly Removal And Installation
Supply Pump – Timing
Fuel Injector Removal And Installation
Injector Correction
Removing Air From The Fuel System
CYLINDER HEAD
Intake Air Heater – Testing
Intake Air Heater Removal And Installation
Valve Clearance Adjustment
Valve Timing – Checking
Cylinder Head Removal And Installation
Cylinder Head Disassembly And Assembly
Cylinder Head – Servicing
Cylinder Head Top Clearance
Valve Guide – Inspecting
Reconditioning The Valve And Valve Seat
Valve Spring
Valve Tappets
Rocker Arm And Shaft – Inspecting
Valve Bridge Arm And Shaft – Inspecting
Push Rod Alignment – Inspecting
CRANKSHAFT AND PISTONS
Piston And Connecting Rod Removal And Installation
Piston And Connecting Rod – Servicing
Cylinder Bore – Testing
Connecting Rod Alignment
Crankshaft Gear Removal And Installation
Crankshaft And Bearings Removal
Crankshaft And Bearings Installation
Crankshaft And Bearings – Servicing
CRANKSHAFT POSITION SENSOR
Description
Removal And Installation
Adjusting
CAMSHAFT AND TIMING GEARS
Timing Gearcase Cover Removal And Installation
Timing Gears Backlash – Testing
Idler Gear And Camshaft Removal And Installation
Camshaft – Servicing
Idler Gear And Shaft – Servicing
TURBOCHARGER
Description
Removal And Installation
Testing
EGR Cooler Testing
FLYWHEEL AND HOUSING
Flywheel Removal And Installation
Ring Gear Removal And Installation
Housing Removal And Installation
EXHAUST GAS RECIRCULATION (EGR) SYSTEM
Description
Testing
Removal And Installation
HEATING, VENTILATION AND AIR CONDITIONING (HVAC)
AIR CONDITIONING SYSTEM FLOW
Description
AC System Diagram
Components
Safety Equipment
REGULAR MAINTENANCE
Filters
Compressor Drive Belt Adjustment
Compressor Drive Belt Replacement
Condenser
Air Conditioning Lubrication
Air Conditioning Service Chart
Evaporator / Heater Coil
TROUBLESHOOTING
Blower Motor Does Not Operate
Blower Motor Operates Normally, But Air Flow Is Insufficient
Insufficient Cooling Although Air Flow And Compressor Operation Are Normal
The Compressor Does Not Operate At All, Or Operates Improperly
The Compressor Does Not Operate At All, Or Operates Improperly (Cont’d)
Gauge Pressure Related Troubleshooting
Troubleshooting Tree
Temperature / Pressure Chart
Poor A/C Performance
HVAC Repair And Leaks
Electrical System
Engine Coolant Bypassing The Heater Valve
Heater Valve Not Opening Or Closing
SYSTEM CHARGING AND RECLAMATION
Refrigerant Identification
Reclamation And Charging With Recovery / Charging Unit
COMPRESSOR
Removal And Installation
Oil
Oil Check
CONDENSER
Removal And Installation
RECEIVER / DRIER (EARLIER MODELS)
Receiver / Drier Removal And Installation
Pressure Relief Valve Removal And Installation
Pressure Switch Removal And Installation
Schrader® Valve Removal And Installation
RECEIVER / DRIER (LATER MODELS)
Receiver / Drier Removal And Installation
Pressure Switch Removal And Installation
Schrader® Valve Removal And Installation
EVAPORATOR / HEATER UNIT
Removal And Installation
THERMOSTAT
Description
Removal And Installation
EXPANSION VALVE
Removal And Installation
EVAPORATOR COIL
Removal And Installation
HEATER COIL
Removal And Installation
BLOWER FAN
Removal And Installation
Disassembly And Assembly
HEATER VALVE
Removal And Installation
EVAPORATOR / HEATER COVER
Removal
Installation
SPECIFICATIONS
(S850) LOADER SPECIFICATIONS
Machine Dimensions
Performance
Engine
Drive System
Controls
Hydraulic System
Electrical System
Capacities
Tires
TECHNICAL SERVICE GUIDE SPECIFICATIONS
Engine
Engine Torques
Cooling System
Loader Torques
Hydraulic / Hydrostatic System
Fuel Consumption
TORQUE SPECIFICATIONS FOR BOLTS
Torque For General SAE Bolts
Torque For General Metric Bolts
HYDRAULIC CONNECTION SPECIFICATIONS
Straight Thread O-ring Fitting
Flare Fitting
Tubelines And Hoses
HYDRAULIC / HYDROSTATIC FLUID SPECIFICATIONS
Specifications
CONVERSIONS
Decimal And Millimeter Equivalent Chart
U.S. To Metric Conversion Chart
SERVICE TOOLS REQUIRED
Remote Start Tools
Hydraulic Tools
Mainframe And Drive Tools
Electrical Tools
Engine Tools
HVAC Tools
ALPHABETICAL INDEX

There are no reviews yet.

Be the first to review “Service manual Bobcat S850 ATF411001 ATF511001 & Up | 6990257”

Your email address will not be published. Required fields are marked *

CAPTCHA ImageChange Image
