Service manual Hitachi ZX210LC-5B, ZX330LC-5G, ZX350LC-5B Telescopic Arm (Rope type) | WDDD-EN-OP-00

9,99 $

Format: PDF
Type: Workshop Manual
Pages: 154
Size: 1,1 Mb
No.: WDDD-EN-OP-00

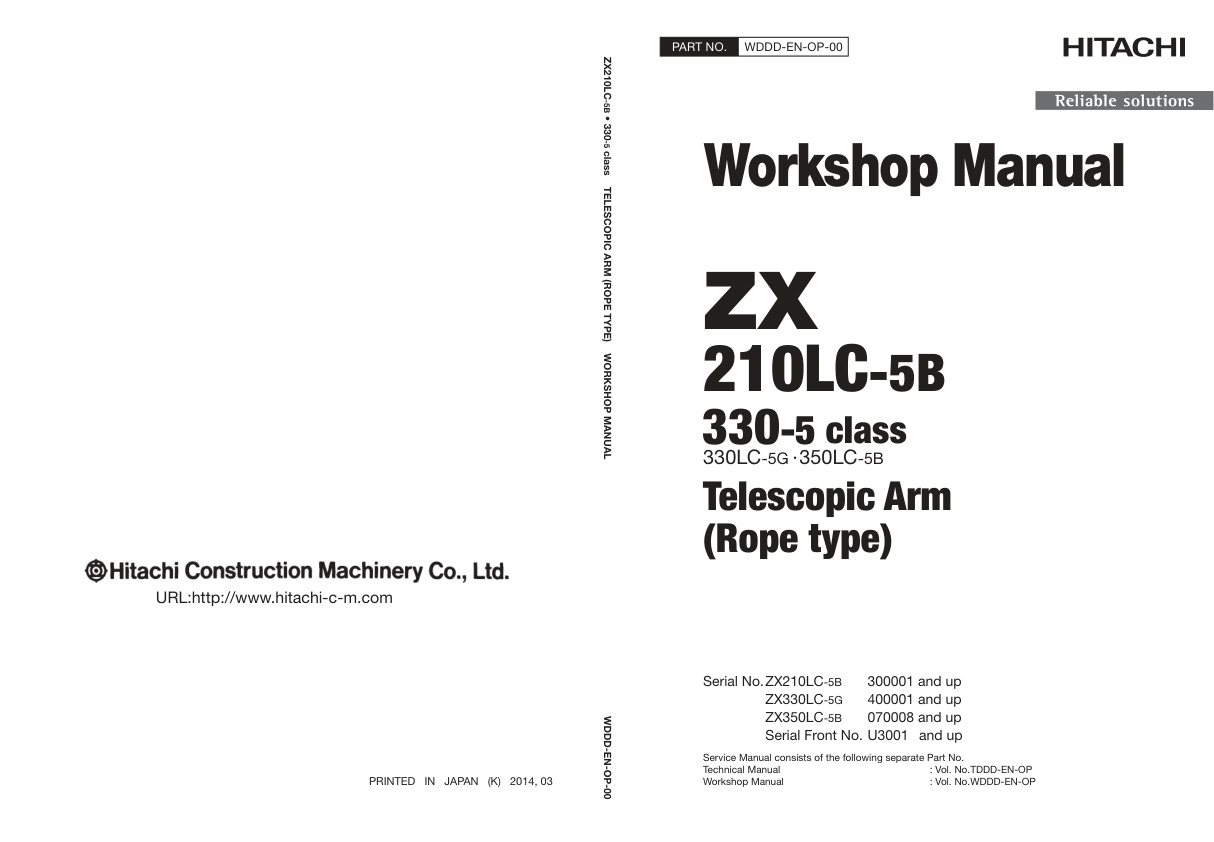

Hitachi 210LC-5B, 330LC-5G, 350LC-5B Telescopic Arm (Rope type) WDDD-EN-OP-00 (Preview)

WDDD-EN-OP-00

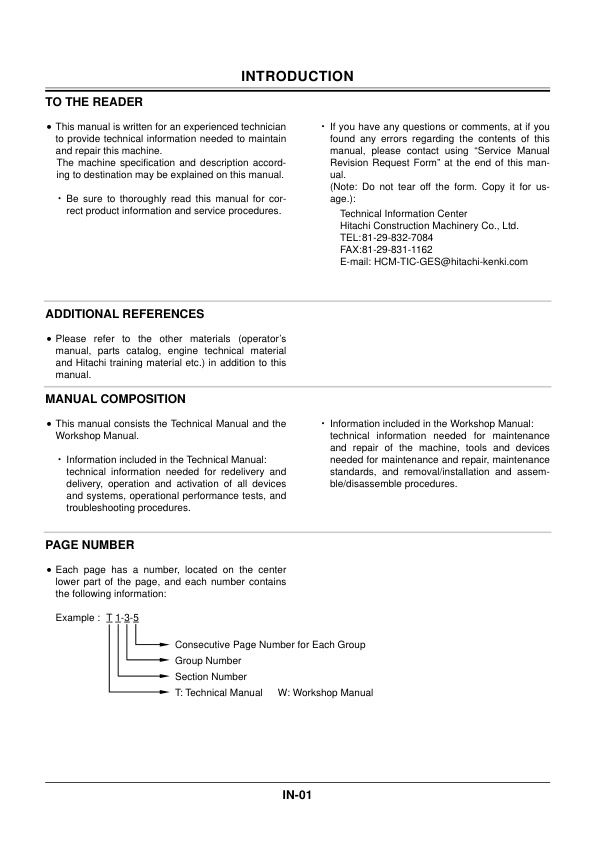

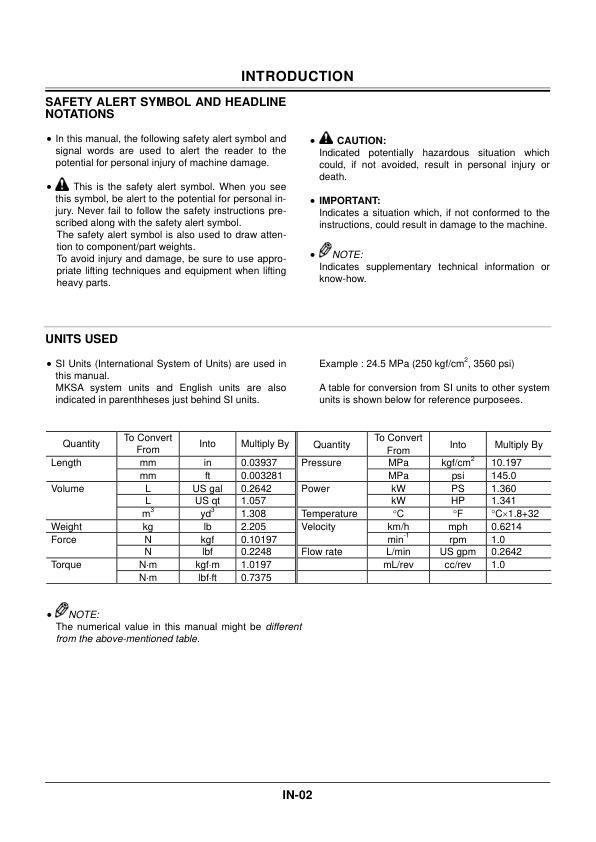

INTRODUCTION

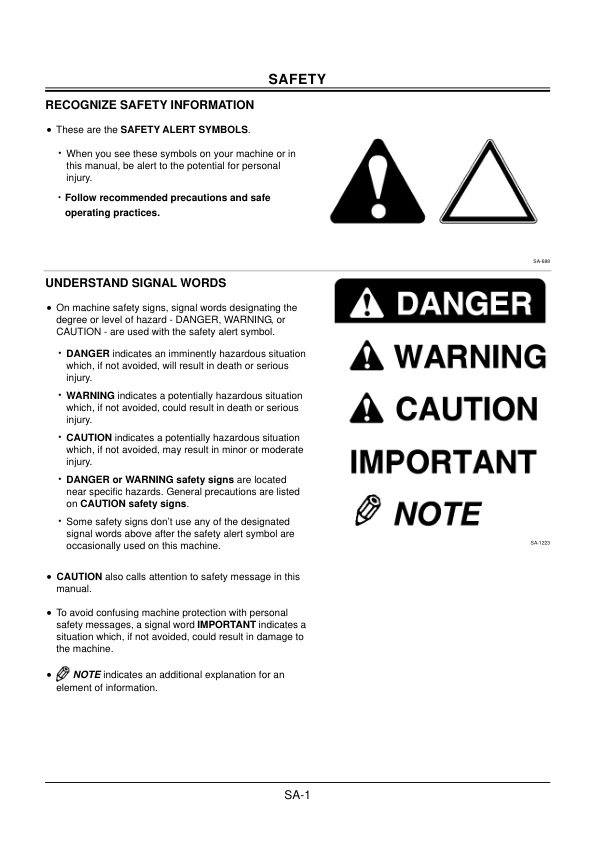

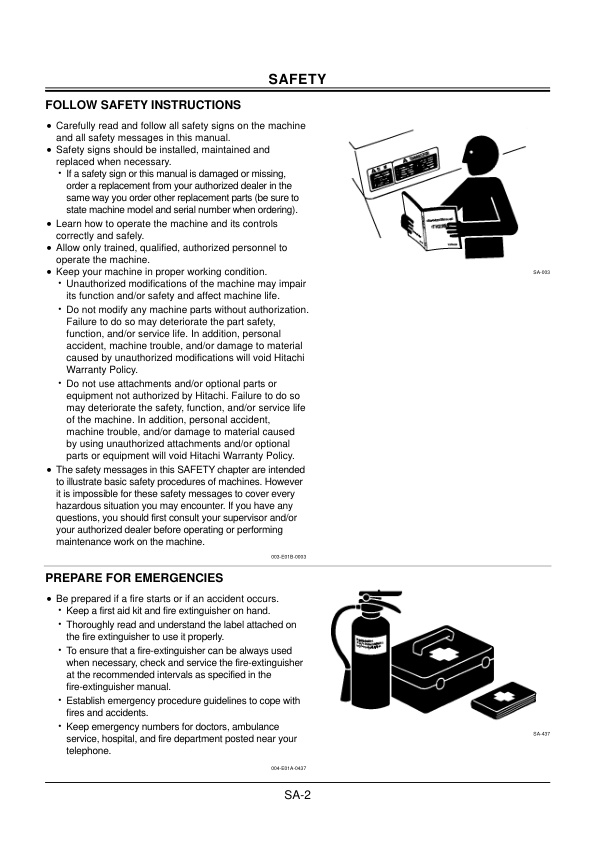

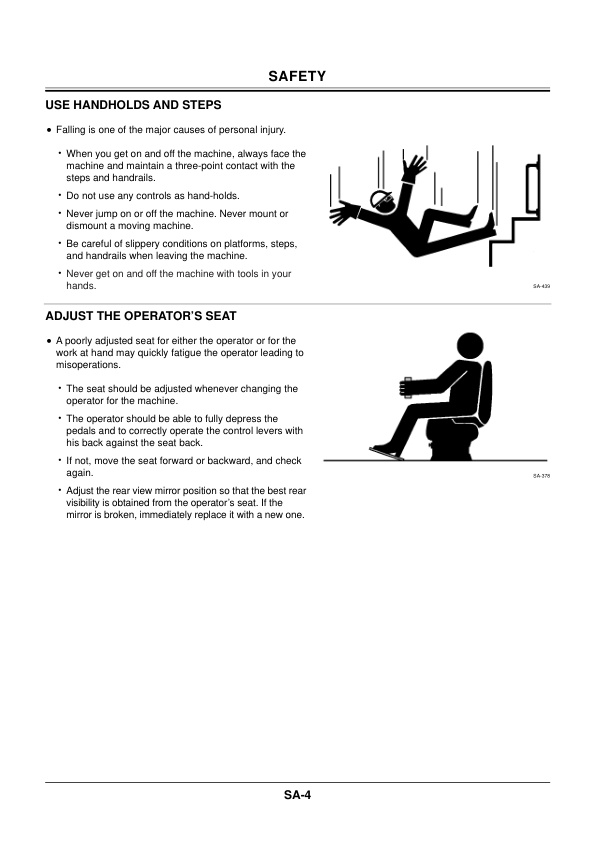

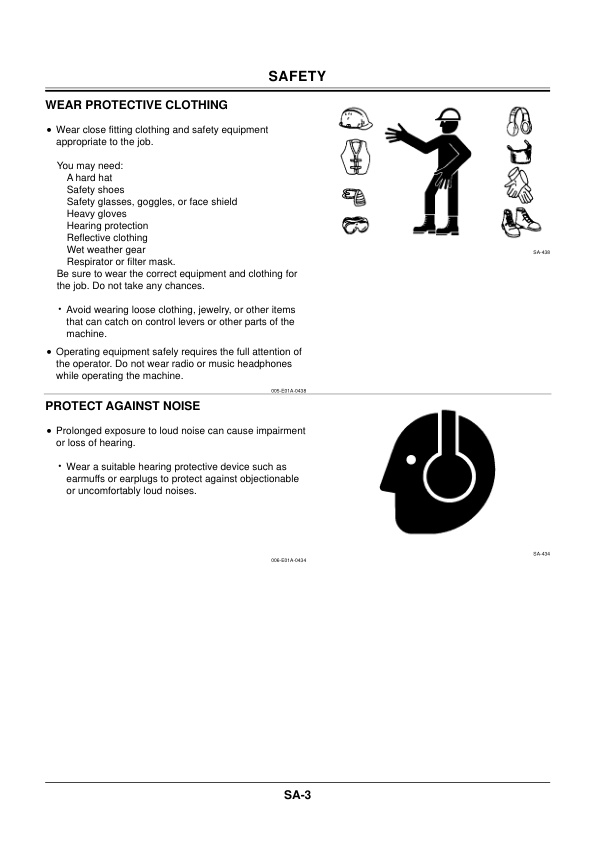

SAFETY
SECTION 5 SPECIAL ATTACHMENT
Group 1 Rope Operated Type Telescopic Clamshell
Remove and Install Rope Operated Type Telescopic Clamshell
Disassemble Telescopic Arm
Assemble Telescopic Arm
Group 2 Wire Rope
Replacement of Hoisting Rope
Replacement of Press-In Rope
Replacement of Equalizer Rope
Tension Adjustment of Wire Rope
Group 3 Hose
Replacement of Hose
Group 4 Slide Plate
Remove and Install Slide Plate
Group 5 Cylinder
Disassembly of Extend / Retract Cylinder (ZX330LC-5, ZX350LC-5)
Assembly of Extend / Retract Cylinder (ZX330LC-5, ZX350LC-5)
Disassembly of Extend / Retract Cylinder(ZX200LC-5, ZX210LC-5)
Assembly of Extend / Retract Cylinder (ZX200LC-5, ZX210LC-5)
Group 6 Others
Remove and Install Regenerative Valve Block
Structure of Regenerative Valve Block
Adjustment of Alarm Device
