Kobelco SK230-6E, SK230LC-6E, SK250-6E, SK250LC-6E, SK250NLC-6E Excavator S5LQ0012E (Preview)
**Index of shop Manual**
**Model:** SK230 (LC)-6E, SK250 (LC)-6E, SK250 (NLC)-6E
| Book Code No. / Distribution Year-Month | Category | Title | Index No. |
| :— | :— | :— | :— |
| LQ09-04801~ LL09-03501~ | | APPLICABLE MACHINES | |

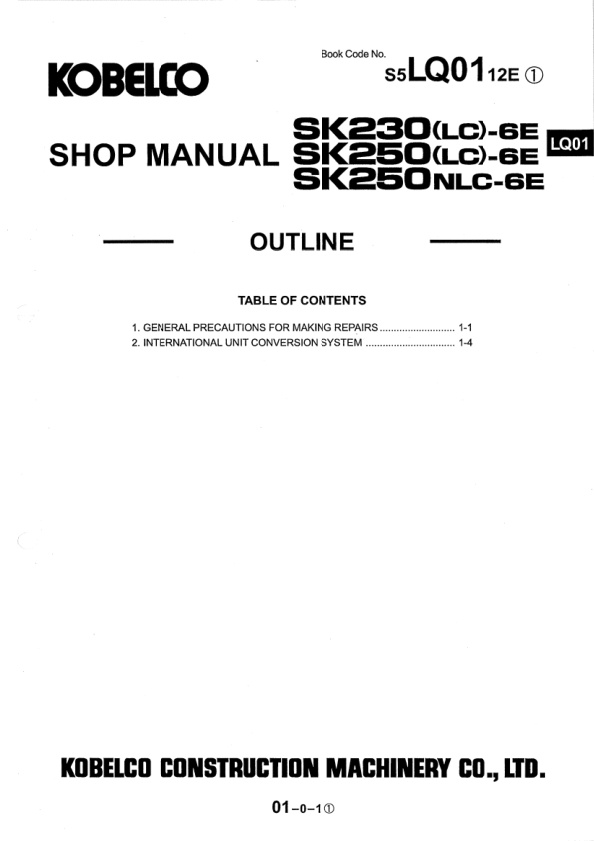

| S5LQ112E / 2002-10 | S5LQ112E① / 2003-11 | **SPECIFICATIONS** | OUTLINE | LQ01 |
| S5LQ212E / 2002-10 | S5LQ212E① / 2003-11 | | SPECIFICATION | LQ02 |
| S5LQ312E / 2002-10 | S5LQ312E① / 2003-11 | | ATTACHMENT DIMENSION | LQ03 |
| S5LQ112E / 2002-10 | S5LQ112E① / 2003-11 | **MAINTENANCE** | TOOLS | LQ11 |
| S5LQ212E / 2002-10 | S5LQ212E① / 2003-11 | | STANDARD MAINTENANCE TIME SCHEDULE | LQ12 |
| S5LQ312E / 2002-10 | S5LQ312E① / 2003-11 | | MAINTENANCE STANDARD AND TEST PROCEDURE | LQ13 |
| S5LQ2112E / 2002-10 | S5LQ2112E① / 2003-11 | **SYSTEM** | MECHATRO CONTROL SYSTEM | LQ21 |
| S5LQ2212E / 2002-10 | S5LQ2212E① / 2003-11 | | HYDRAULIC SYSTEM | LQ22 |
| S5LQ2312E / 2002-10 | S5LQ2312E① / 2003-11 | | ELECTRICAL SYSTEM | LQ23 |
| S5LQ2412E / 2002-10 | S5LQ2412E① / 2003-11 | | COMPONENTS SYSTEM | LQ24 |
| S5LQ2512E / 2002-10 | S5LQ2512E① / 2003-11 | | AIR-CONDITIONER SYSTEM | LQ25 |
| S5LQ3112E / 2002-10 | S5LQ3112E① / 2003-11 | **DISASSEMBLING** | DISASSEMBLING AND ASSEMBLING | LQ31 |
| S5LQ3212E / 2002-10 | S5LQ3212E① / 2003-11 | | ATTACHMENT | LQ32 |
| S5LQ3312E / 2002-10 | S5LQ3312E① / 2003-11 | | UPPER STRUCTURE | LQ33 |
| S5LQ3412E / 2002-10 | S5LQ3412E① / 2003-11 | | TRAVEL SYSTEM | LQ34 |
| S5LQ4112E / 2002-10 | S5LQ4112E① / 2003-11 | **TROUBLESHOOTING**| MECHATRO CONTROL | LQ41 |
| S5LQ4212E / 2002-10 | S5LQ4212E① / 2003-11 | | HYDRAULIC | LQ42 |
| S5LQ4312E / 2002-10 | S5LQ4312E① / 2003-11 | | ELECTRICAL | LQ43 |
| S5LQ4412E / 2002-10 | S5LQ4412E① / 2003-11 | | ENGINE | LQ44 |
| S5LQ5112E / 2002-10 | S5LQ5112E① / 2003-11 | **E/G** | ENGINE | LQ51 |
| | | **OPT.** | MOUNTING THE BREAKER AND NIBBLER & BREAKER | LQ63 |
| | S5LQ6601E / 2004-07 | | LIFTING MAGNET | LQ66 |
