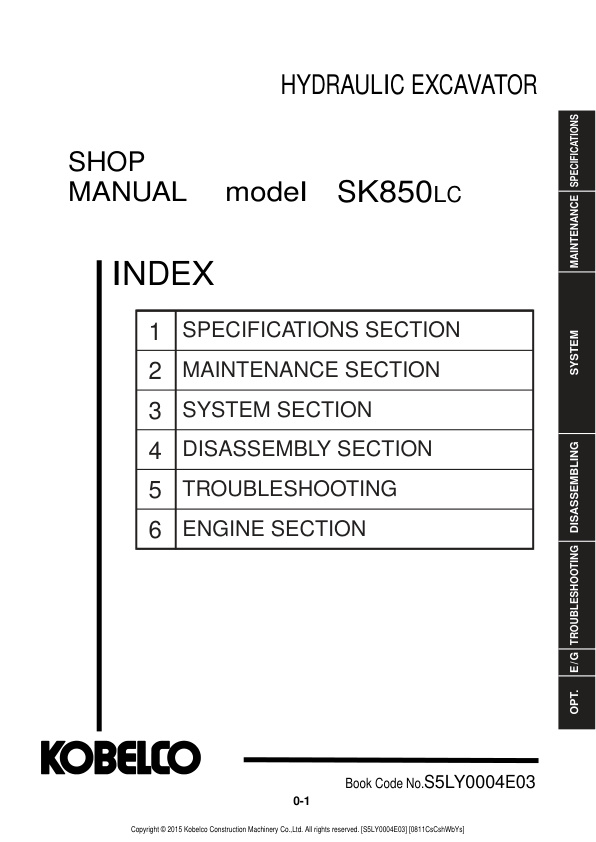

Service manual Kobelco SK850LC Excavator | S5LY0004E03

Kobelco SK850LC Excavator S5LY0004E03 (Preview)

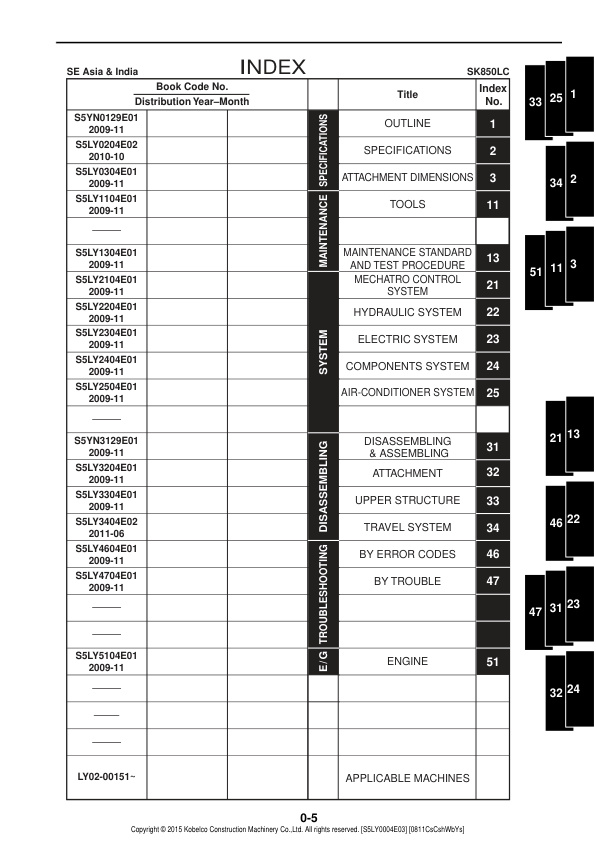

**INDEX**
**Model:** SK850LC
**Region:** SE Asia & India

| Book Code No. / Distribution Year-Month | Category | Title | Index No. |
| :— | :— | :— | :— |
| S5YN0129E01 / 2008-11 | **SPECIFICATIONS** | OUTLINE | 1 |
| S5LY0204E02 / 2010-10 | | SPECIFICATIONS | 2 |
| S5LY0304E01 / 2009-11 | | ATTACHMENT DIMENSIONS | 3 |
| S5LY1104E01 / 2009-11 | **MAINTENANCE** | TOOLS | 11 |
| S5LY1304E01 / 2009-11 | | MAINTENANCE STANDARD AND TEST PROCEDURE | 13 |
| S5LY2104E01 / 2009-11 | **SYSTEM** | MECHATRO CONTROL SYSTEM | 21 |
| S5LY2204E01 / 2009-11 | | HYDRAULIC SYSTEM | 22 |
| S5LY2304E01 / 2009-11 | | ELECTRIC SYSTEM | 23 |
| S5LY2404E01 / 2009-11 | | COMPONENTS SYSTEM | 24 |
| S5LY2504E01 / 2009-11 | | AIR-CONDITIONER SYSTEM | 25 |
| S5YN3129E01 / 2009-11 | **DISASSEMBLING** | DISASSEMBLING & ASSEMBLING | 31 |
| S5LY3204E01 / 2009-11 | | ATTACHMENT | 32 |
| S5LY3304E01 / 2009-11 | | UPPER STRUCTURE | 33 |
| S5LY3404E02 / 2011-05 | | TRAVEL SYSTEM | 34 |
| S5LY4604E01 / 2009-11 | **TROUBLESHOOTING**| BY ERROR CODES | 46 |
| S5LY4704E01 / 2009-11 | | BY TROUBLE | 47 |
| S5LY5104E01 / 2009-11 | **E/G** | ENGINE | 51 |
| LY02-00151~ | | APPLICABLE MACHINES | |
