Electrical & Hydraulic Circuit Diagram Hitachi ZX180W-7 Excavator | TTLBN50-EN-00 (2021.09.28)

TTLBN50-EN-00_Circuit(20210928)

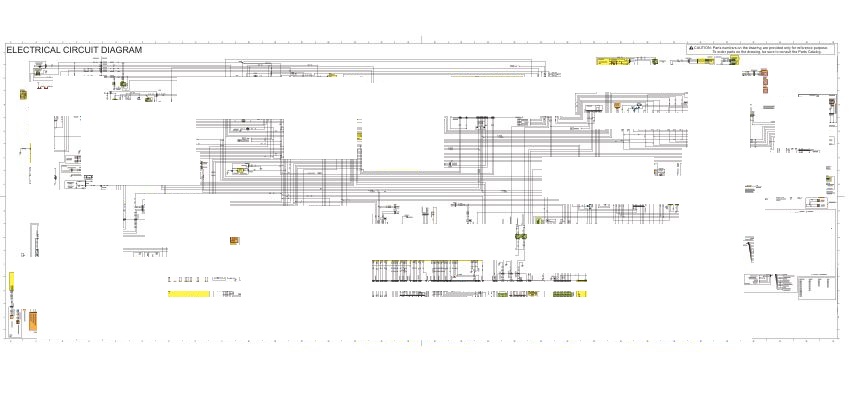

ELECTRICAL CIRCUIT DIAGRAM
CONNECTORS
CAB HARNESS
MAIN HARNESS
FLOOR HARNESS
CHASSIS HARNESS
PUMP HARNESS
CONTROL VALVE HARNESS
CONSOLE HARNESS
MONITOR HARNESS
NOx HARNESS
WIPER HARNESS
WIPER MOTOR HARNESS
PILOT SHUT-OFF SOLENOID VALVE HARNESS
ENGINE STOP SWITCH HARNESS
CIGAR LIGHTER HARNESS
HEADLIGHT HARNESS
HYDLAULIC CIRCUIT DIAGRAM
TTLBN50-EN-00_Circuit_OP(20210316)
POSITIONING SOLENOID VALVE SUB HARNESS
POSITIONING PRESSURE SENSOR SUB HARNESS
AUXILIARY SOLENOID VALVE SUB HARNESS
AUXILIARY FLOW COMBINER HARNESS
BREAKER SUB HARNESS
HYDRAULIC OIL FILTER RELAY HARNESS
FUEL FILLING PUMP SWITCH HARNESS
LLC HEATER HARNESS
AUTO LUBRICATION HARNESS
ASSIST PRESSURE SENSOR SUB HARNESS
ASSIST SOLENOID VALVE SUB HARNESS
ASSIST PRESSURE SENSOR SUB HARNESS(CONTROL VALVE SIDE)
BOOM BOTTOM PRESSURE SENSOR HARNESS
WORK LIGHT (BOOM) HARNESS
BOOM LIGHT (RIGHT) HARNESS
WORK LIGHT (ARM) HARNESS
LED HEADLIGHT HARNESS
REAR LIGHT HARNESS
CAMERA LIGHT HARNESS
POSITIONING LIGHT HARNESS
POSITIONING LIGHT SUB HARNESS
TURN SIGNAL LIGHT SUB HARNESS
BEACON LIGHT (COUNTERWEIGHT) HARNESS
LICENSE LIGHT HARNESS
LICENSE LIGHT SUB HARNESS
