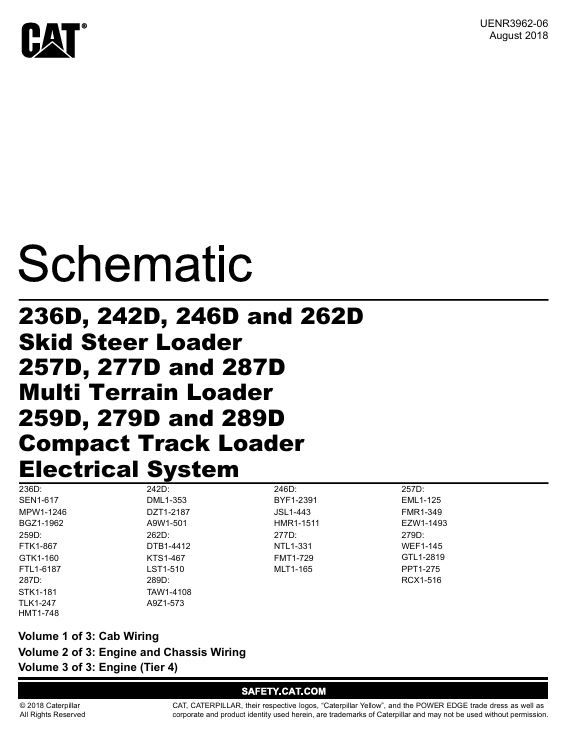

Schematic Caterpillar 236D, 242D, 246D, 262D, 257D, 277D, 287D, 259D, 279D, 289D | UENR3962-06

THIS SCHEMATIC IS FOR THE 236D, 242D, 246D AND 262D SKID STEER LOADER 257D, 277D, AND 287D MULTI TERRAIN LOADER 259D, 279D, AND 289D COMPACT TRACK LOADER ELECTRICAL SYSTEM

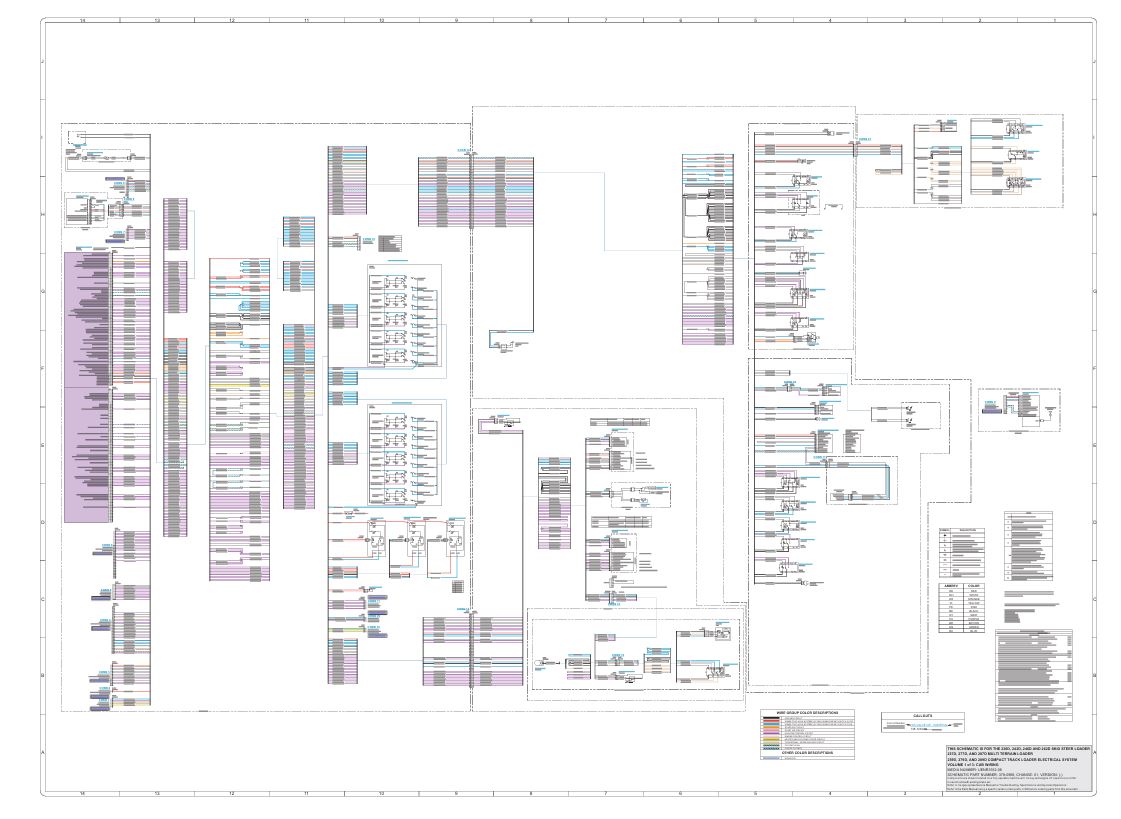

VOLUME 1 of 3: CAB WIRING
MEDIA NUMBER: UENR3962-06
SCHEMATIC PART NUMBER: 378-0968, CHANGE: 01, VERSION: (-)

THIS SCHEMATIC IS FOR THE 236D, 242D, 246D AND 262D SKID STEER LOADER 257D, 277D, AND 287D MULTI TERRAIN LOADER 259D, 279D, AND 289D COMPACT TRACK LOADER ELECTRICAL SYSTEM
VOLUME 2 of 3: ENGINE AND CHASSIS WIRING
MEDIA NUMBER: UENR3962-06
SCHEMATIC PART NUMBER: 378-0968, CHANGE: 01, VERSION: (-)

THIS SCHEMATIC IS FOR THE 236D/242D/246D/262D SKID STEER LOADER, 257D/277D/287D MULTI TERRAIN LOADER, 259D/279D/289D COMPACT TRACK LOADER ELECTRICAL SYSTEM
VOLUME 3 of 3: ENGINE (TIER 4)
MEDIA NUMBER: UENR3962-06
SCHEMATIC PART NUMBER: 378-0968, CHANGE: 01, VERSION: (-)
