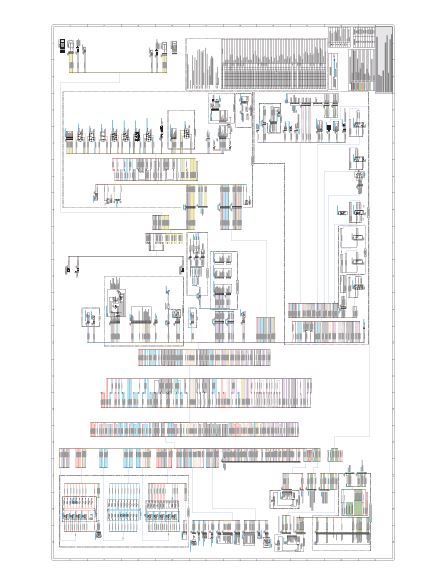

Schematic Caterpillar 924K, 930K, 938K Wheel Loader Electrical System | UENR6207

THIS SCHEMATIC IS FOR THE 924K, 930K , AND 938K WHEEL LOADER ELECTRICAL SYSTEM
VOLUME 1 of 3: CAB
MEDIA NUMBER: UENR6207
SCHEMATIC PART NUMBER: 471-8035, CHANGE: 01, VERSION: –

THIS SCHEMATIC IS FOR THE 924K, 930K, AND 938K WHEEL LOADER ELECTRICAL SYSTEM
VOLUME 2 of 3: ENGINE AND CHASSIS
MEDIA NUMBER: UENR6207
SCHEMATIC PART NUMBER: 471-8035, CHANGE: 01, VERSION: –

THIS SCHEMATIC IS FOR THE 924K, 930K, AND 938K WHEEL LOADER ELECTRICAL SYSTEM
VOLUME 3 of 3: CAB HARN – CANOPY
MEDIA NUMBER: UENR6207
SCHEMATIC PART NUMBER: 471-8035, CHANGE: 01, VERSION: –
