Schematic Caterpillar 924K, 926M, 930K, 930M, 938K & 938M Small Wheel Loader Hydraulic System | M0107766-03

Feature

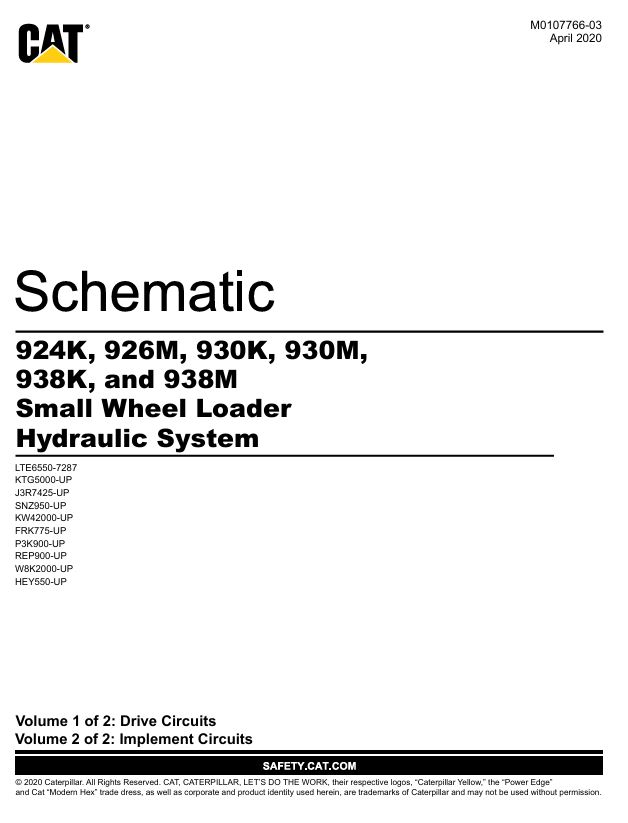

Cover Page
Information
– Component Location
— Vol 1 – Drive Circuits
— Vol 2 – Implement Circuits
– Tap Location
— Vol 1 – Drive Circuits
— Vol 2 – Implement Circuits
Schematics
– Function Isolation Tools
— Grids On/Off
— All Circuits Off
— All Circuits On
– Vol 1 – Drive Circuits
— 032 (Red) (Main Pump Output)
— 141 (Lt Orange) (Lube Pump Output)
— 305 (Lt Blue) (Steering Circuit)
— 346 (Med Green) (Fan/Brake Circuit)
— 347 (Dk Green) (Supply Line)
— 464 (Brown) (Brake Circuit)
— 577 (Lt Green) (Drain/Return Line)
— 5767 (Olive Green) (Hystat Circuit)
— CON 347 (Dk Green/Gray Stripe) (Lube Pump Supply Circuit)
– Vol 2 – Implement Circuits
— 021 (Orange) (Pilot Pump Output)
— 032 (Red) (Main Pump Output)
— 141 (Lt Orange) (Lube Pump Output)
— 190 (Dk Pink) (Auxiliary 1 Circuit)
— 258 (Dk Purple) (Load Sense Circuit)
— 305 (Lt Blue) (Steering Circuit)
— 346 (Med Green) (Fan/Brake Charge Pump)
— 347 (Dk Green) (Supply Line)
— 430 (Dk Gray) (Fusion Coupler Circuit)
— 500 (Med Pink) (Differential Lock Circuit)
— 509 (Lt Pink) (Auxiliary 2 Circuit)
— 577 (Lt Green) (Drain /Return Line)
— 613 (Dk Yellow) (Tilt Cylinder Circuit)
— 4665 (Tan) (Lift Cylinder Circuit)
— CON 347 (Dk Green/Gray Stripe) (Lube Pump Supply Circuit)
Machine Views
– Vol 1 – Drive Circuits
— Left Side View
— Right Side View
– Vol 2 – Implement Circuits
— Right Side View
— Steering Pump Details
— Steering Manifold Detail
— Front Cylinders
— Frontal View
