Schematic Caterpillar 926M, 930M & 938M Small Wheel Loader Hydraulic System | M0113495-01

Feature

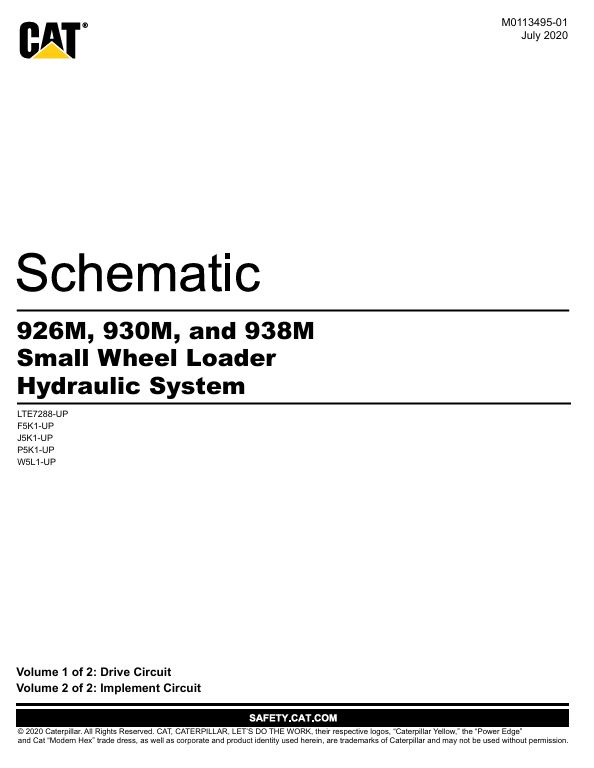

Cover Page
Information
– Component Location
— Vol 1 – Drive Circuit
— Vol 2 – Implement Circuit
– Tap Location
— Vol 1 – Drive Circuit
— Vol 2 – Implement Circuit
Schematics
– Function Isolation Tools
— Grids On/Off
— All Off
— All On
– Vol 1 – Drive Circuit
— 032 (Red) (Main Pump Output)
— 141 (Lt Orange) (Lube Pump Circuit)
— 305 (Lt Blue) (Steering Circuit)
— 346 (Med Green) (Fan / Brake Charge Pump)
— 347 (Dk Green) (Supply Line)
— 464 (Brown) (Brake Circuit)
— 577 (Lt Green) (Drain / Return Line)
— 5767 (Olive Green) (Hystat Pump Circuit)
— CON 347 (Dk Green/Gray Stripe) (Lube Pump Supply Circuit)
– Vol 2 – Implement Circuit
— 021 (Orange) (Pilot Pump Output)
— 032 (Red) (Main Pump Output)
— 141 (Lt Orange) (Lube Pump Circuit)
— 190 (Dk Pink) (Auxiliary 1 Circuit)
— 258 (Dk Purple) (Load Sense Circuit)
— 305 (Lt Blue) (Steering Circuit)
— 346 (Med Green) (Fan / Brake Circuit)
— 347 (Dk Green) (Supply Line)
— 430 (Dk Gray) (Fusion Coupler Circuit)
— 500 (Med Pink) (Differential Lock Circuit)
— 509 (Lt Pink) (Auxiliary 2 Circuit)
— 577 (Lt Green) (Drain / Return Line)
— 613 (Dk Yellow) (Tilt Cylinder Circuit)
— 4665 (Tan) (Lift Cylinder Circuit)
— CON 347 (Dk Green/Gray Stripe) (Lube Pump Supply Circuit)
Machine Views
– Vol 1 – Drive Circuit
— Drive Circuit – Left View
— Drive Circuit – Right View
— Radiator View
– Vol 2 – Implement Circuit
— Chassis – Left Side View
— Coupler Circuit
— Front Tandem
— Ride Control
