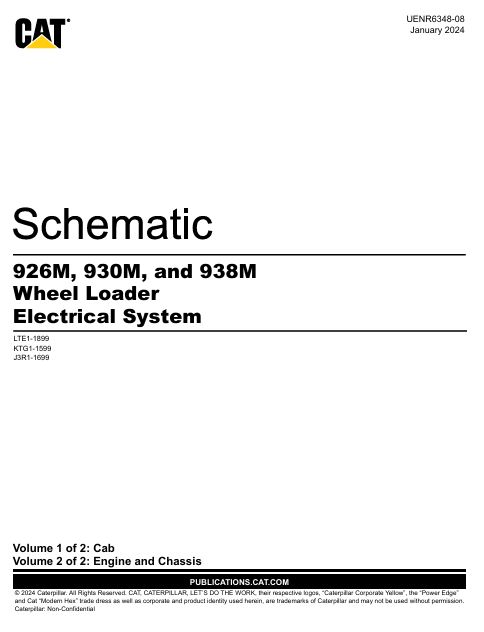

Schematic Caterpillar 926M, 930M & 938M Wheel Loader Electrical System | UENR6348-08

Features
Cover Page
Information
– Component Location
— Vol 1 – Cab
— Vol 2 – Engine and Chassis
— Page 1 of 2
— Page 2 of 2
– Connector Location
— Vol 1 – Cab
— Vol 2 – Engine and Chassis
Schematics
– Function Isolation Tools
— Grids On/Off
— All Circuits Off
— All Circuits On
— Vol 1 – Cab
— Unspecified Circuit
— Ground (Black)
— Battery Power Circuit (Red 032)
— Key Power Circuit (Blue 640)
— Starting Circuit (Orange 021)
— Transmission Control Circuit (Dk Purple 258)
— Machine Security Control Circuit (Dk Gray 430)
— Engine Control Circuit (Lt Pink 509)
— Heat/AC Circuit (Dk Yellow 613)
— Turn/Wiper/Washer Circuit (Tan 4665)
— CAT Data Link (Green/Black Stripe CON 346)
— J1939/1587 Data Link (Lt Pink/Black Stripe CON 509)
— CAN “A” Data Link (Dk Pink Stripe CON 190)
— Vol 2 – Engine and Chassis
— Unspecified Circuit
— Ground (Black)
— Battery Power Circuit (Red 032)
— Key Power Circuit (Blue 640)
— Starting Circuit (Orange 021)
— Start Aid Circuit (Dk Pink 190)
— Transmission Control Circuit (Dk Purple 258)
— Monitor Control Circuit (Med Green 346)
— Engine Control Circuit (Lt Pink 509)
— Heat/AC Circuit (Dk Yellow 613)
— Turn/Wiper/Washer Circuit (Tan 4665)
— CAT Data Link (Green/Black Stripe CON 346)
— J1939/1587 Data Link (Lt Pink/Black Stripe CON 509)
— Implement Control Circuit (Lt Orange Stripe SUB 141)
— CAN “A” Data Link (Dk Pink Stripe CON 190)
— CAN “C” Data Link (Lt Orange/Black Stripe CON 141)
— DEF Control Circuit (Olive Green CON 5767)
Machine Views
– Vol 1 – Cab
— Cab Front View
— Cab Rear View
— Cab Right Side View
— Head Liner Console
— Pdeal and Right Console
— Right Console
– Vol 2 – Engine and Chassis
— Aftertreatment Unit
— Cab Right Side View
— Chassis Front Right Side
— Chassis Front with RA Harness
— Chassis Rear View
— Chassis Right Side View
— Chassis Top View
— Cooling Unit
— DEF Unit
— Engine Left Side View
— Engine Right Side View
— Engine Top View
— LH Ladder
— Prefilter Motor
— Transmission Left Side View
— Transmission Right Side View
