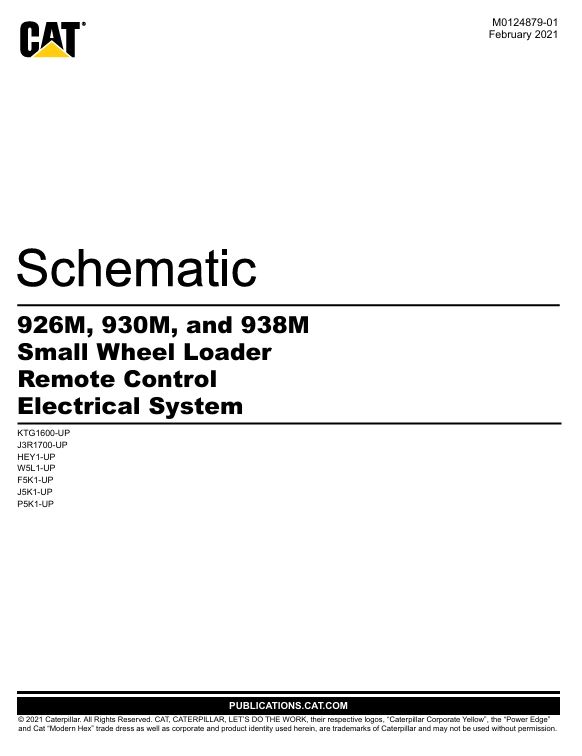

Schematic Caterpillar 926M, 930M & 938M Small Wheel Loader Remote Control Electrical System | M0124879-01

Features
Cover Page
Information
– Component Location
– Connector Location
Schematic
– Function Isolation Tools
— Grids On/Off
— All Circuits Off
— All Circuits On
— Unspecified Circuit
— Black (Ground)
— (Red) (Battery Power)
— (Blue) (Key Power)
— (Orange) (Starting)
— CAN “A” D.L
— CAN “B” D.L.
— CAN “C” D.L.
— (Blue Gray) (Ethernet)
— (Lt Gray) (Remote Access)
Machine Views
– Cab – Bottom View
– Cab – Interior View
– Cab – Right Side View
– Machine – Left Side View
